Sun position analysis

This custom tool allows the end user to display a sun position analysis for any position in Austria by clicking on the map. The free web service of Geoland.at then provides information about the horizon, the sun's path and the theoretical sunshine duration for the selected position and the entered elevation above the ground. To use this function you have to configure the Custom Tool tool_form.htm from the directory C:\Tomcat\webapps\<WebOffice application>\pub\custom_tools\SonnenStandsAnalyseAT as follows:



icon_cross-reference

More information about the web service can be found here.



(1) Web-Integration - custom tool

Configure a custom tool from the Web integration group with the following parameters:



Parameter

Settings

URL of external page

pub\custom_tools\SonnenStandsAnalyseAT\tool_form.htm

JavaScript function

callFromWO

Tool icon


Visible in Client

Desktop clients only

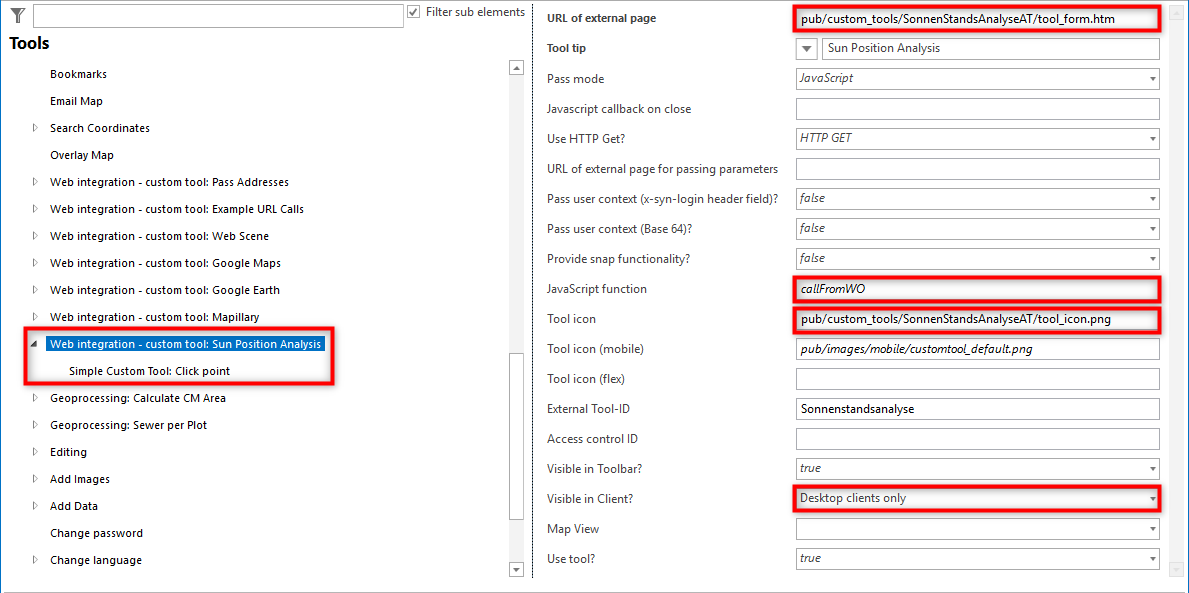

Configuration of a custom tool for sun position analysis

Configuration of a custom tool for sun position analysis



(2) Simple Custom Tool

Then, configure a Simple Custom Tool

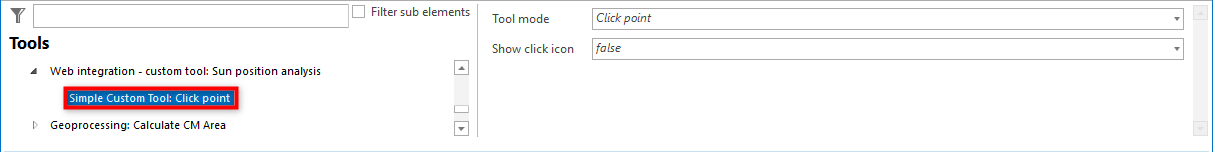

Configuration of a simple custom tool for sun position analysis

Configuration of a simple custom tool for sun position analysis



icon_cross-reference

For more details on configuring a custom tool, refer to the chapter Web Integration - Custom Tool.
