Profile Service Austria

This custom tool allows the end user to display a terrain section over any 2 point route in Austria. The free web service of Geoland.at then displays elevation information based on the laserscan elevation models of the individual federal states. Information on terrain height (DTM) and surface height (DSM) with a maximum resolution of 1 x 1 meter is returned in the form of a value table and profile representation. The table can be downloaded as a .csv file, the profile representation as a .pdf file.



icon_cross-reference

More information about the web service can be found here.



To be able to use this function, configure the custom tool tool_form.htm from the directory C:\Tomcat\webapps\<WebOffice application>\pub\custom_tools\ProfilServiceAT, which is delivered by default with  WebOffice 10.9 SP1, as follows:



(1) Web-Integration - custom tool

Configure a custom tool from the Web integration group with the following parameters:



Parameter

Settings

URL of external page

pub\custom_tools\ProfilServiceAT\tool_form.htm

JavaScript function

callFromWO

Tool icon


Visible in Client

Desktop clients only

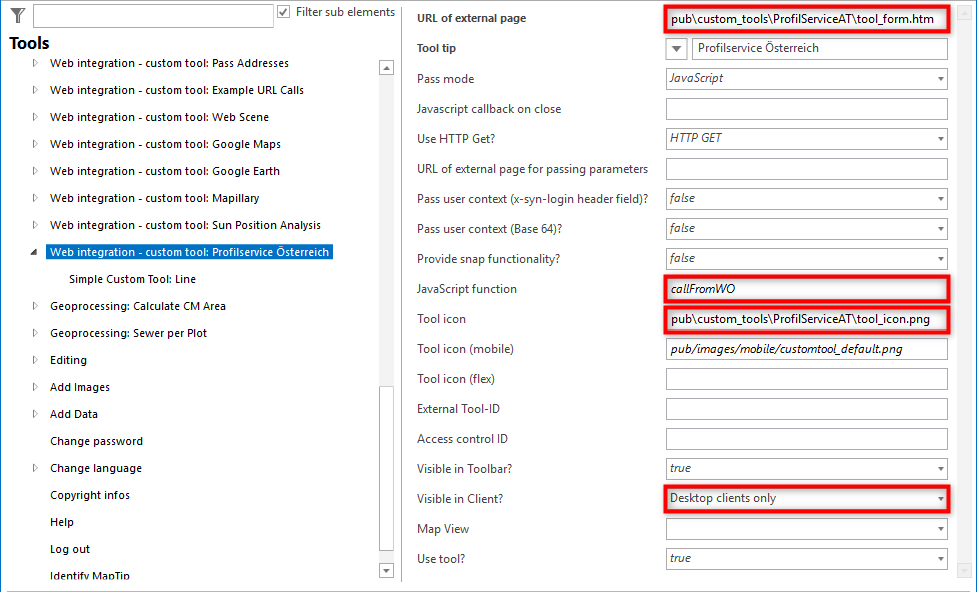

Configuration of a custom tool for the Profile Service Austria

Configuration of a custom tool for the Profile Service Austria



(2) Simple Custom Tool

Then, configure a Simple Custom Tool und set the parameter Tool mode to Line.

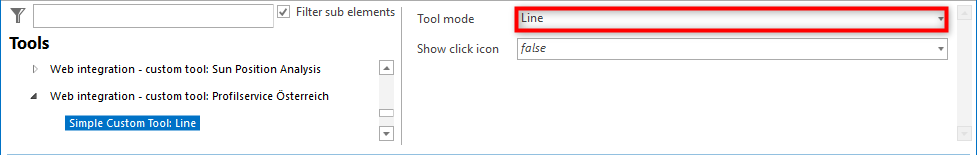

Configuration of a custom tool for the Profile Service Austria

Configuration of a custom tool for the Profile Service Austria



icon_cross-reference

For more details on configuring a custom tool, refer to the chapter Web Integration - Custom Tool .
