This is not an officially supported configuration scenario from VertiGIS and should only be performed by experienced WebOffice 10.9 SP1 administrators.



The general appearance (e.g. color scheme, font, etc.) for the WebOffice mobile client can be customized as follows:

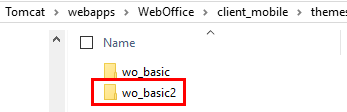

Go to the directory of the WebOffice mobile client in your WebOffice 10.9 SP1 application (.\client_mobile\themes) and make a copy of the default skin:

Create a copy for the project skin

Create a copy for the project skin



In the newly created directory wo_basic2, various CSS files that are responsible for the appearance of the WebOffice mobile client can be customized.

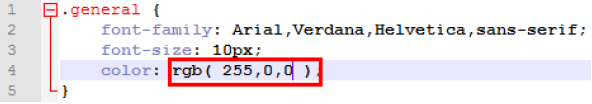

In the following example, the font color is set in the WebOffice mobile client in the fonts.css file:

howto_mobile_skins2

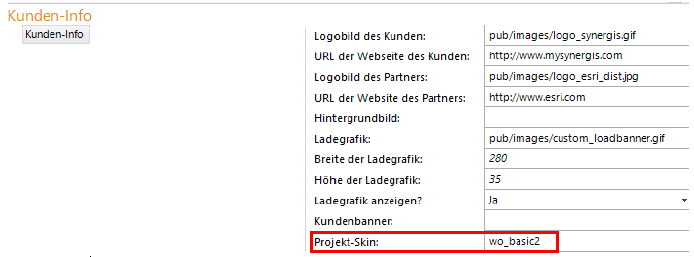

Then open the WebOffice 10.9 SP1 project configuration and enter the name of the folder you copied and adapted earlier in the Project skin field in the Customer information area.

WebOffice 10.9 SP1 project configuration and "Customer information" area

WebOffice 10.9 SP1 project configuration and "Customer information" area



Save the project and republish the project. If necessary, the browser cache must be deleted.

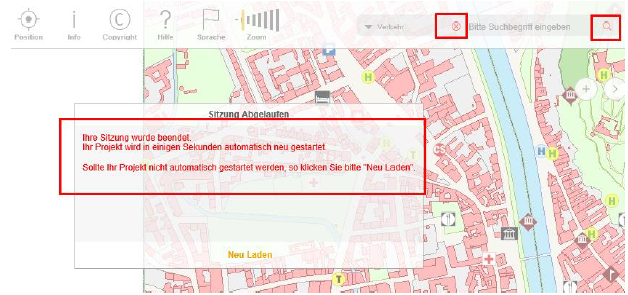

The font color in the WebOffice mobile client now looks changed:

Customized font color and color environment for the WebOffice mobile client

Customized font color and color environment for the WebOffice mobile client
