Internet of Things (IoT) Integration

icon_cross-reference

Please note that this function is not part of the standard product scope and has to be considered in a project context. Therefore the files required for configuring an IoT Integration are not included in the standard product. If you are interested in using IoT Integrations, please contact the WebOffice Support Team.



With WebOffice 10.9 SP1 it is possible to integrate IoT in the WebOffice core client, provided that the necessary information for WebOffice is accessible via REST API.

Please configure the IoT Integration directly on the desired Search result view as external application:

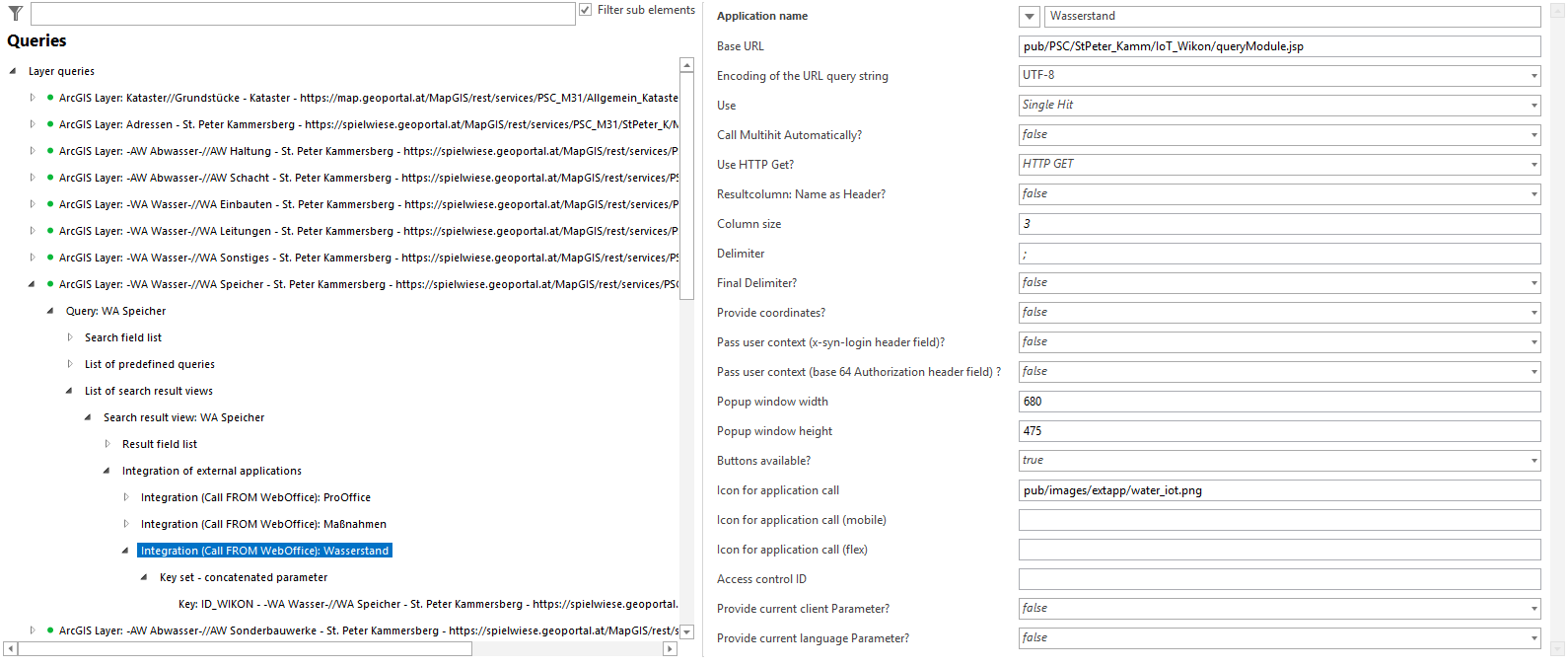

Configuration of an Integration (Call FROM WebOffice) for retrieving information of an IoT sensor

Configuration of an Integration (Call FROM WebOffice) for retrieving information of an IoT sensor

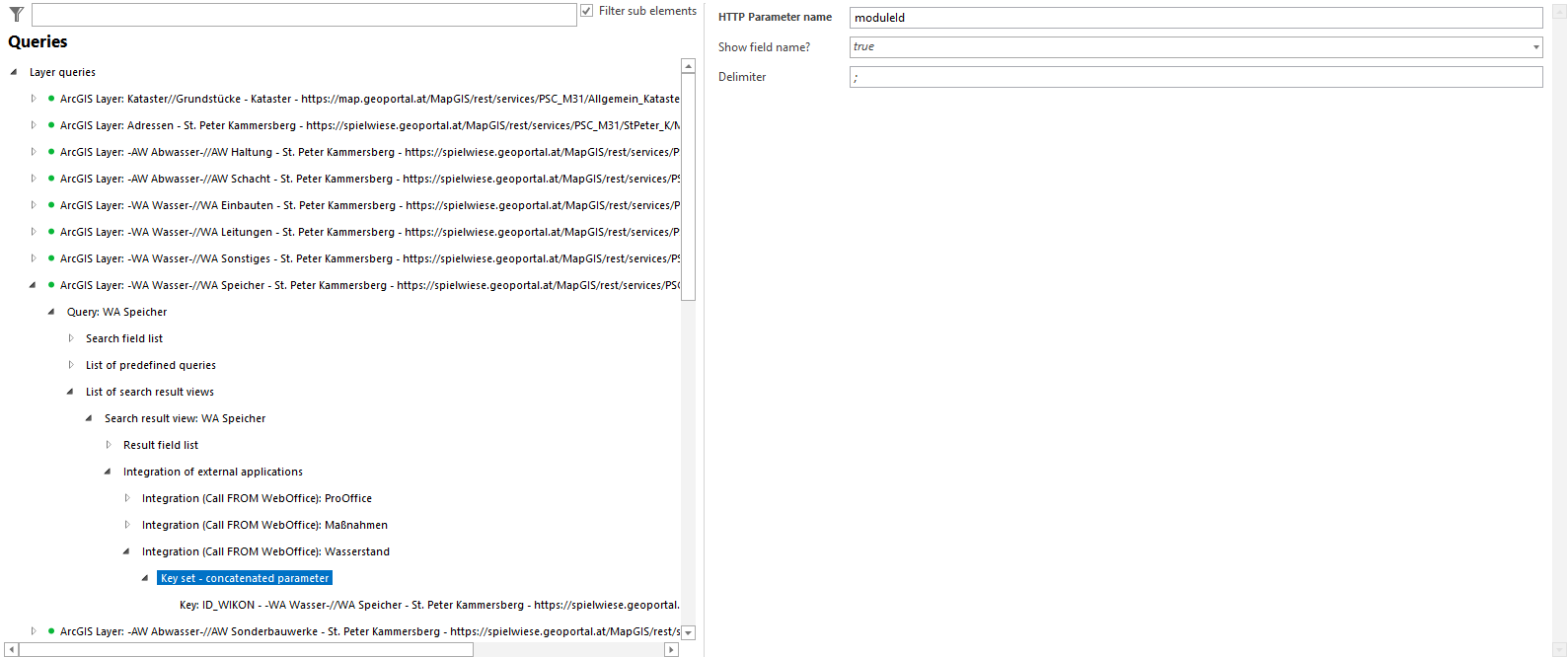

Configuration of an HTTP Parameter name for retrieving information of an IoT sensor

Configuration of an HTTP Parameter name for retrieving information of an IoT sensor

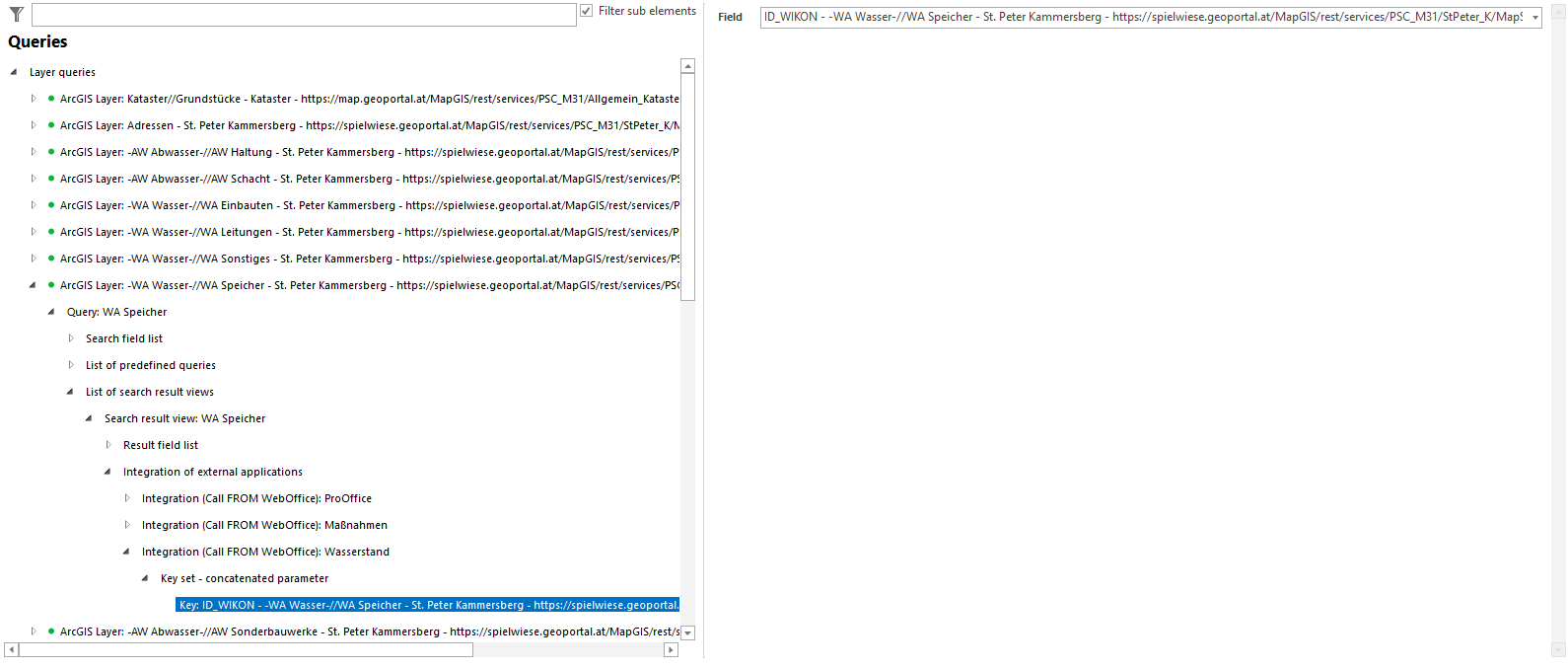

Configuration of a Key Field for retrieving information from an IoT sensor

Configuration of a Key Field for retrieving information from an IoT sensor

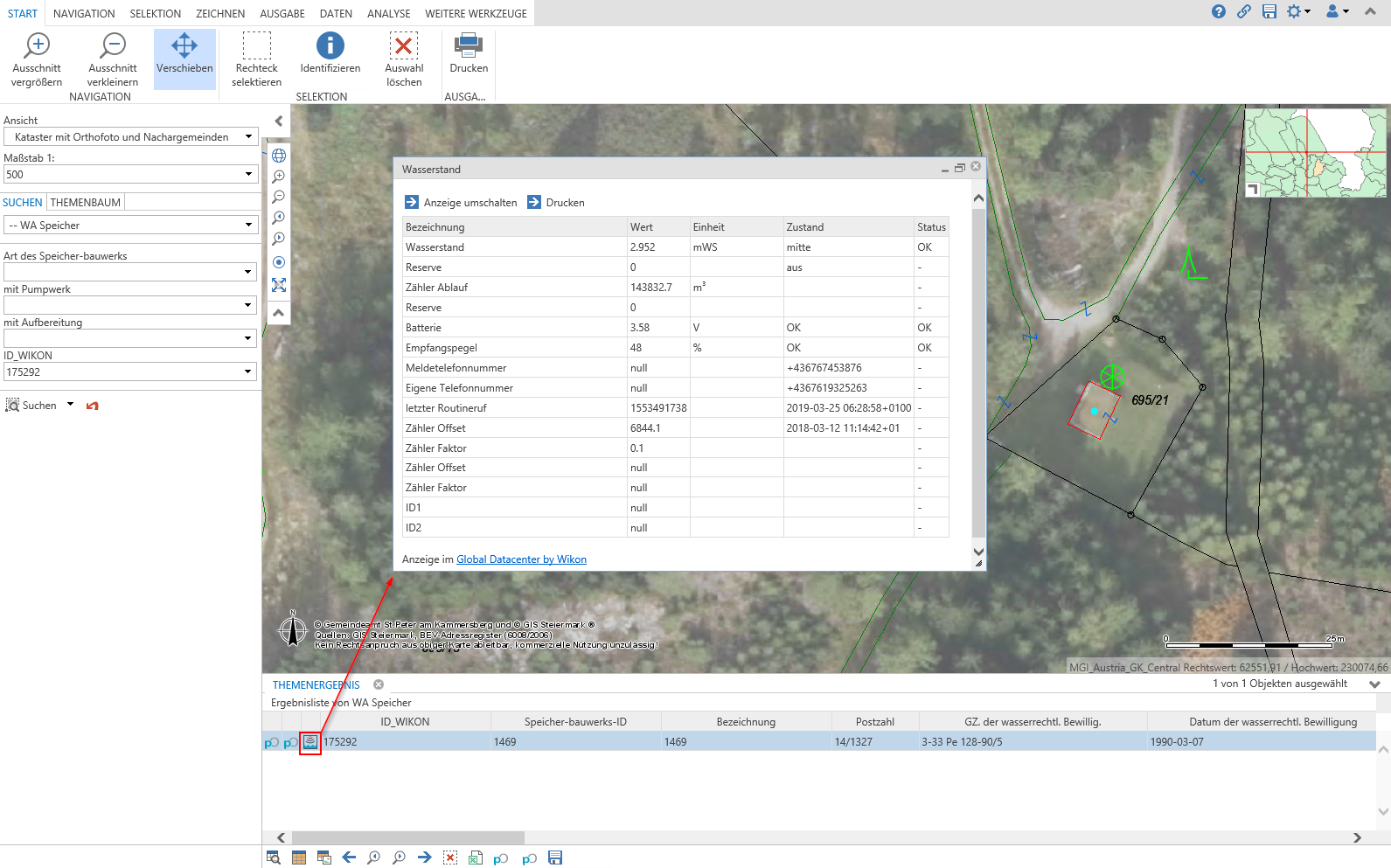

IoT Integration in WebOffice core Client

IoT Integration in WebOffice core Client



An icon suitable for an external application that displays water level data can be found under <WebOffice application>\pub\images\extapp\water_iot.png.



icon_cross-reference

For more information about configuring an Integration (Call FROM WebOffice) to pass parameters (object keys, etc.) to other web applications using HTTP GET Query String or HTTP POST, see chapter Integration (Call FROM WebOffice).
