Multiple Object Editing

icon_comment

In order to edit the attributes of existing objects it's necessary to configure Edit Layers and the Editing Tool in the WebOffice 10.9 R4 project.

icon_cross-reference

For further information on how to configure the tool Multiple Object Editing see chapter Edit Layers.



This tool allows for a selection of objects to change object attributes in one edit (Multiple Object Editing). Multiple Object Editing can significantly increase user efficiency when maintaining status information, etc.



For example, if several objects are created, they can be selected simultaneously to edit their attributes (see screenshot). Unselected objects are not considered while editing attributes.

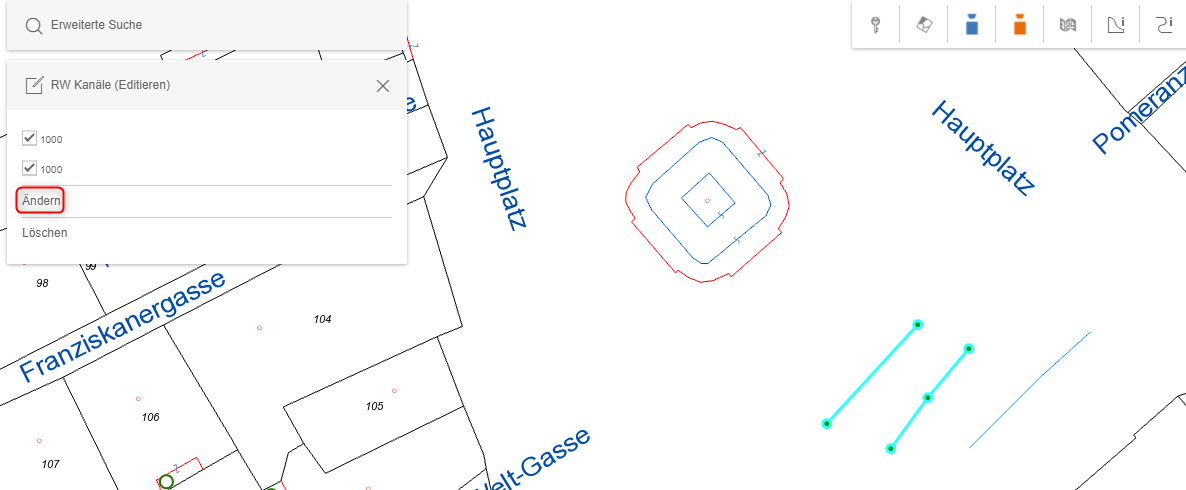

Edit multiple attributes simultaneously with Multiple Object Editing

Edit multiple attributes simultaneously with Multiple Object Editing







After clicking the Modify button the edit form appears where the desired attributes for multiple objects can be edited.

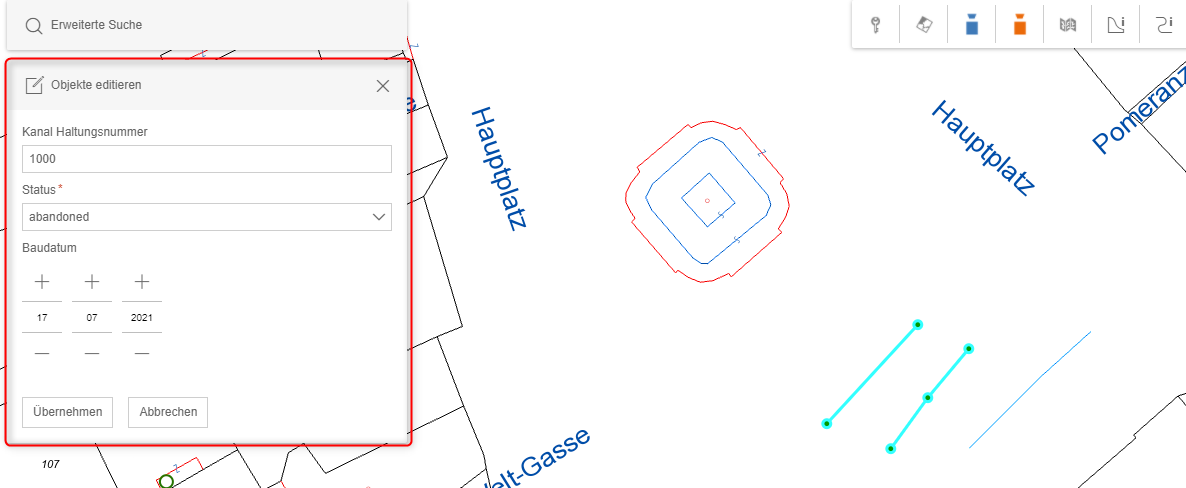

Editing form for Multiple Object Editing

Editing form for Multiple Object Editing



Click the Apply button to confirm the changes.



icon_comment

•In those fields where the same content can be found in all features, the content is displayed. In fields where the content of each feature is different, ~~~~~ is displayed. However, several different fields can still be filled with the same content at the same time.

•Multiple Object Editing can also be started from the selection of several objects (for example, using the Select via Line or Select via Area tool and then clicking on Edit).
