The Redlining Type - Point function can be used to place a point at any position on the map.



Depending on whether markup styles are configured for the %BUILD% project, either the respective markup styles are available or the style dialog.

icon_cross-reference

For more information on configuring drawing styles, see the Markup Style chapter.



In the style dialog, settings in the display can be customized for the following areas:

Point Color

Clicking on the color opens a color selection window.

Point Width

The point width can be changed with the slider.





Additionally, a snap profile can be displayed in the map. To do this, activate the checkbox Toggle Snap Display.

icon_cross-reference

More information about creating and using snap profiles can be found in the chapter Snap Profile for Digitizing/Measuring.



Place the point on the map by clicking the left mouse button (desktop browser) or using a finger gesture (touch-enabled mobile device). Double-click or confirm the checkmark to complete the process.

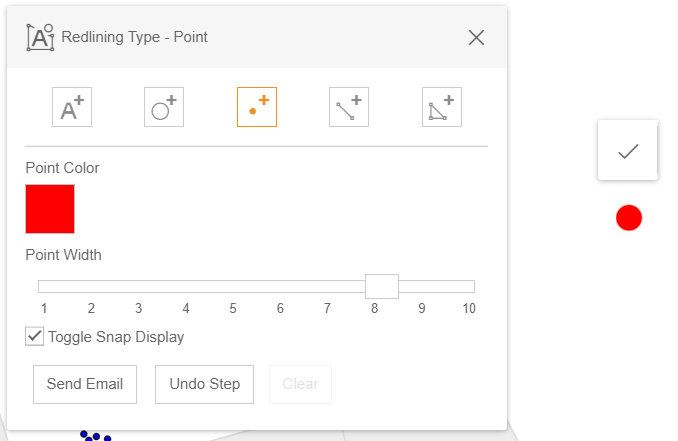

Set a point via snapping with customized rendering in the WebOffice flex client.

Set a point via snapping with customized rendering in the WebOffice flex client.



icon_comment

If you click Send Email, then your email program will be opened and you can send by email a link with a corresponding status ID, in which then all created drawing objects, which were created during the browser session, are contained.

By clicking Clear, all circles set in the browser session will be deleted again.

All graphics and objects drawn in a browser session can be completely deleted using the Delete selection/markup tool.
