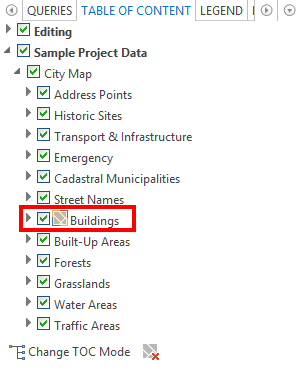

If the Simple Thematic Mapping element was configured correctly on the appropriate ArcGIS layer, the function can be used via the table of contents in the project center of the WebOffice core client. Therefor, open the respective WebOffice 10.9 R4 project within the WebOffice core client. If the configuration of this functionality was successful, an appropriate symbol for the Simple Thematic Mapping functionality should be visible in front of the name of the respective ArcGIS layer in the table of contents:

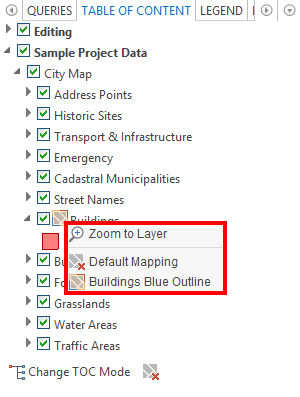

By clicking on the appropriate symbol, a context menu with the following possibilities of interactions opens:







Context menu of the Simple thematic mapping functionality



Example

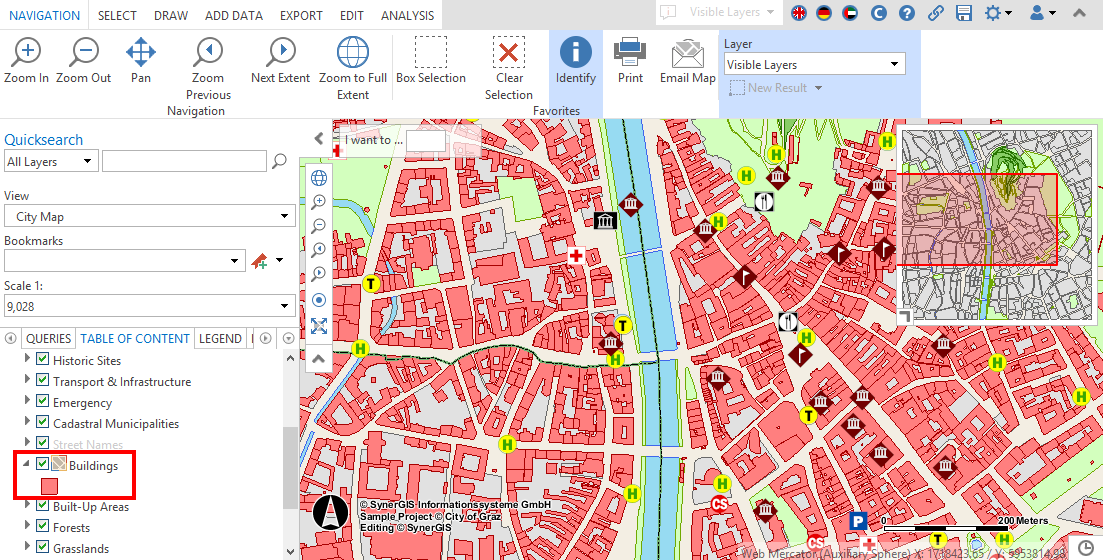

Initially, the default mapping is used after opening the appropriate WebOffice 10.9 R4 project in the WebOffice core client. The respective symbology of this default mapping is also visible within the table of contents:




After choosing another configured mapping within the context menu of the Simple Thematic Mapping functionality, the map window will be updated immediately. You can also see the respective symbology and the name of this configured mapping within the table of contents:







If you are now choosing Default Mapping within the context menu of the Simple Thematic Mapping functionality, the original symbology will be presented.



Note: Please have a look at chapter Simple Thematic Mapping for more details about the preconditions and the configuration of the Simple Thematic Mapping functionality within the WebOffice author.
