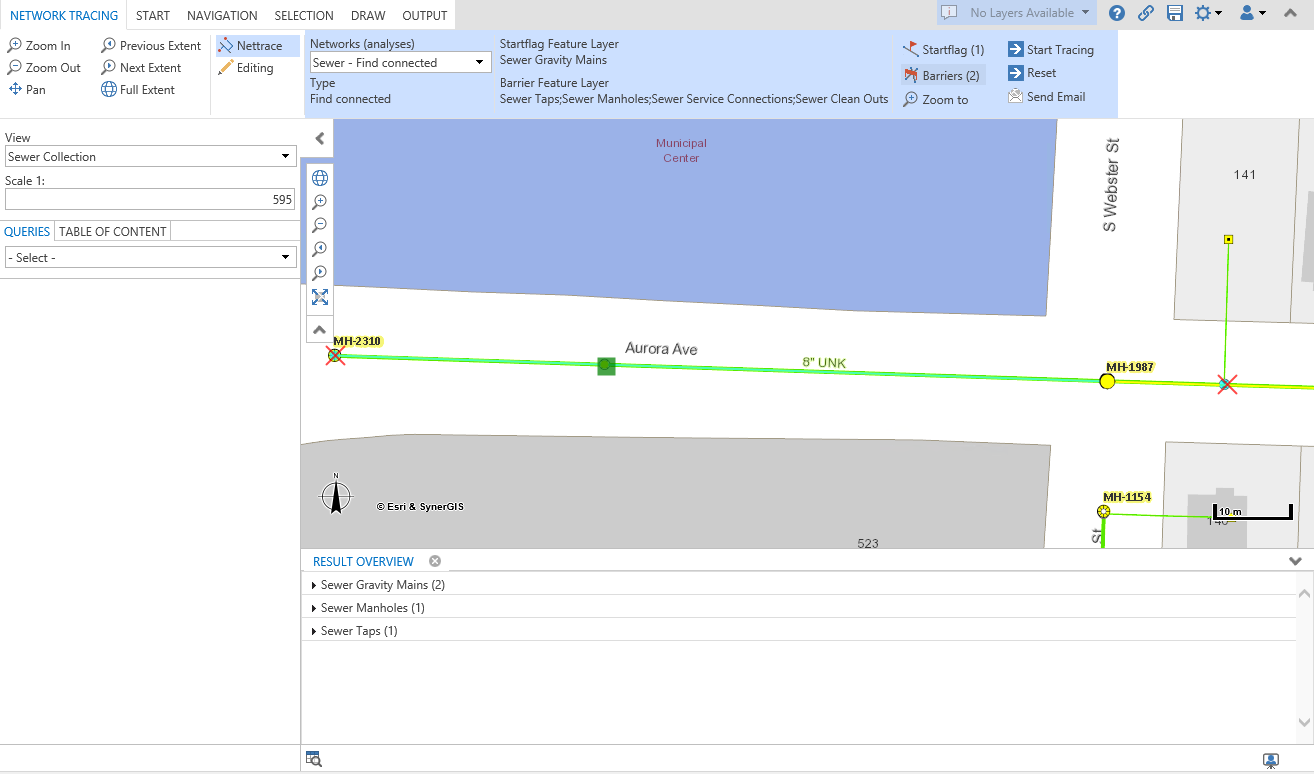

If the tool Net trace is configured correctly, the user is able to set the desired barriers and a start-flag in the client. Subsequent the tracing process can be started.

The start-flag should be set on a meaningful position – so that the tracing process will be stopped at the placed barriers.

If you have configured more than one use cases, the user is able to select a specific one in a drop-down list.



A single result layer will be shown in the search-result section, more result layers will be positioned in the feature summary.



The Send Email button can be used to send the selected net trace use case, the set startflags and barriers (including the start layer) to other users. So the other users can use the exact same net trace use case.



For details regarding the configuration of net trace use cases see chapter Use case net trace.
