Editing with topological assignment

If you have configured a reference-layer for topological assignment on an edit-layer, a restriction will be applied (depending on configured topological assignment). The following example shows the edit-layer „Line“ with the topological reference-layer „Polygon“ and the option single containing feature. Thereby it isn’t possible to edit/create a Line outside of a polygon-feature Polygon. A relevant message will be shown in the client.



Note: These restrictions apply to all configured editing actions.



core_editing_topo_assignment1

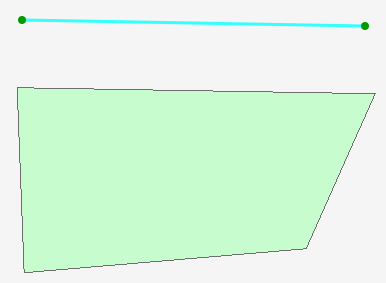

Error message when editing if the topological reference is not met

Error message when editing if the topological reference is not met



Note: For Details about the tool configuration in the WebOffice author standalone see chapter Object Assignment layers (topological).
