By installing WebOffice extension, the WebOffice export author toolbar is available in ArcMap. This toolbar includes functions for generating export configurations for CAD and GIS formats and for testing these without server configurations.

Export Area

After selecting the function an area can be drawn in the map. The drawing takes place when holding the left mouse button and dragging the mouse. All features are exported that are cut by the drawn area or are within the area.

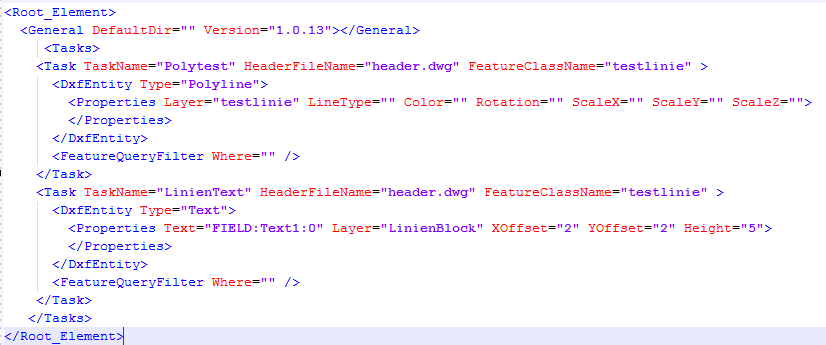

Whether only the elements within the drawn window or also the cut elements are considered for export, is controlled with the attribute ShowMode from the XML configuration.

Export selected features

The export is proceeded for all selected features (e.g. for the selected properties).

View

The export is proceeded for all features of the currently visible section in the map.

All

The export is proceeded for all the features of the map.
