With every output file, a log file of the same name is created in the same folder.

The name for the log is <output file name>.log



If an index export is used, <CADExport>.log will be used as file name.

In this case, the output file is stored in the same folder as the header file.

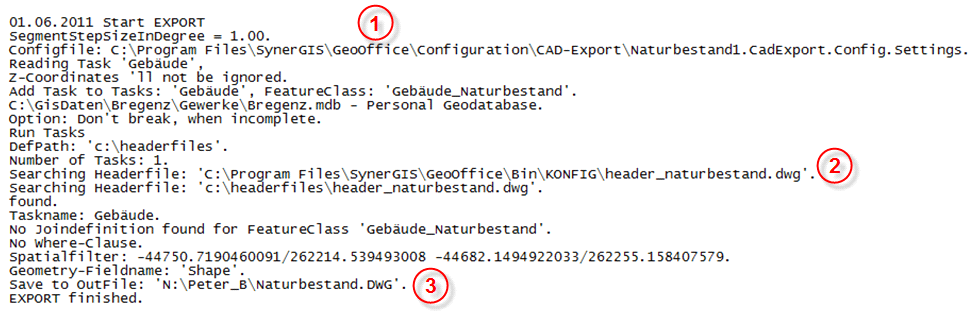

Among others, following information is listed in the log file:

•(1) information on the XML configuration file (file and position)

•(2) listing of the tasks detailing the header file.

•(3) output file (file and position)



All problems encountered during the export process are written in the log file. There is a distinction between:

•ERROR

•WARNING

These entries are in the log file at the beginning of a line, directly after the recorded time.
