Property

Description

mandatory

optional

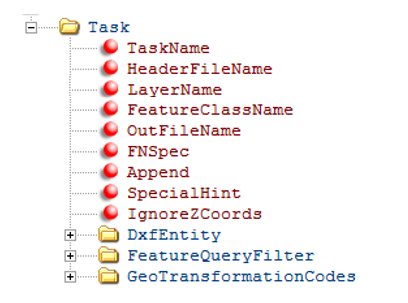

Task name

Serves for the identification of individual tasks. The name is used for the description of the work steps in the log (log file).

x

HeaderFileName

The name of the header file used.

x

LayerName

Is necessary for the export of selected features in WebOffice. The attribute LayerName consists of the dataframe name, the name of the group layer and the layer itself. e.g.

LayerName="SampleProject/Cadaster/Properties"

x

FeatureClassName

The name of the feature class accessed.

x

OutFileName

Is only evaluated for index export. The export name comes from the attribute name of the index objects + <OutFileName>

x

FnSpec

The value is appended to the name of the output file.

x

Append

Is currently not analyzed.

x

SpecialHint

Can be used for the specification of a Leader Line or an Arrow. Arrow stands for a parcel number with arrow and means the alignment by coordinates.

x

IgnoreZCoords

Is the specification that Z coordinate are not to be rendered into CAD. default = 0, alternatively 1.

Only valid for the Z coordinate of features: If CoordZ is explicitly configured as attribute, IgnoreZCoord has no influence on it.

x
