Each step is documented in a line of the text file.

For the default CAD export, with each output file a log file with the same name is stored in the directory of the export file(s).

The name for the log is <output file name>.log.



For the index export, the name of the log is <CADExport>.log.

The log file lies in the directory where the CAD header file lies.

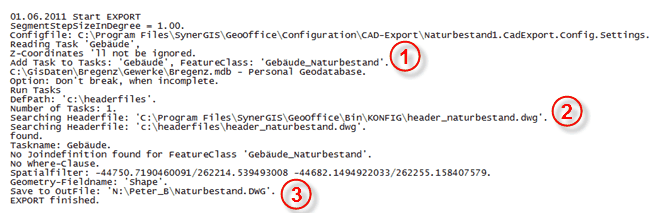

Among others, following information is listed in the log file:

•(1) information on the XML configuration file (file and position)

•(2) listing of the tasks detailing the header file.

•(3) output file (file and position)



If during the export process a problem occurs, this is recorded in the log. There is a distinction between:

•ERROR

•WARNING

These entries are in the log file at the beginning of a line, directly after the recorded time.
