GeoTransformationCodes

<< Click to show table of contents >> Navigation: Command Reference Configuration > Configuration File - Setup > Folder "Tasks":

In this section the transformation for an export is defined. The transformation is used when the coordinate reference system of the input differ from the projection of the output.

Property

Description

mandatory

optional

Code

e.g. 1194 -> MGI_To_WGS_1984_8

The code defines the transformation code. Any amount of codes can be defined. The first code from the list that fits to the desired projection is used for the transformation. If no codes are defined or none of the codes fit for the transformation, the projection of the data is done without transformation.

NEW since WebOffice 10.7: Support of custom transformations

Since WebOffice 10.7 custom transformations can be defined in this configuration. Therefore enter the name of the .gtf File instead of the transformation Code.

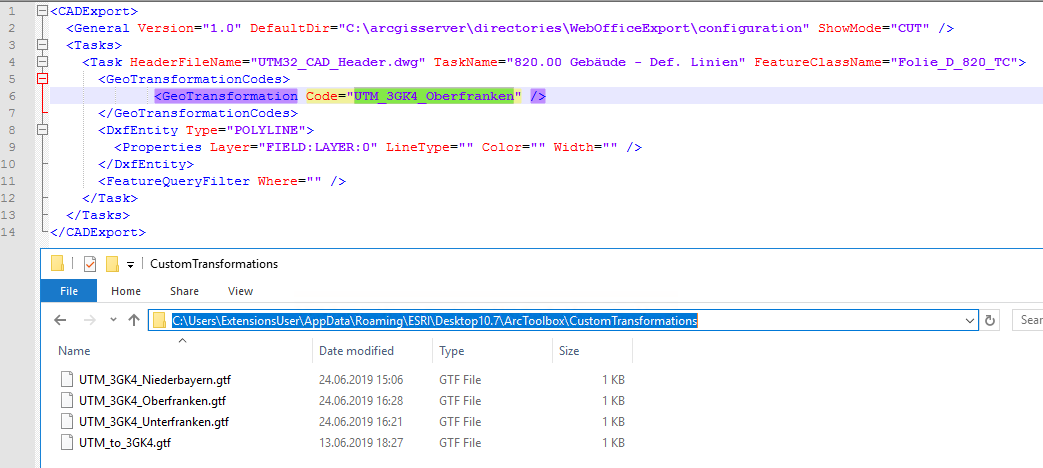

Configuration custom trasnformation
