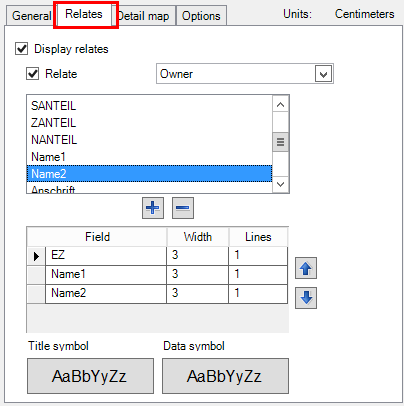

Tab "Relates"
The list field displays all available attributes of the configured relate.
Selecting with the mouse pointer selects an attribute. With
it will be added to the list below. Double-clicking on the attribute in the list also adds it to the list.
To remove an attribute of the target list, click at the minus icon
or press the Del key.
Every attribute of the target list represents a column of the table. The order of the columns is given by the order of the lines. It is possible to change the order of selected lines with the up
and down
icons.
|
If a field has an alias, the alias is used to display the title. |
Menu |
Description |
|---|---|
Display relates |
If a relate is defined on the layer, the option Display relation can be enabled. |
Relate |
The drop down list displays all available relates on the selected layer. |
Title symbol |
Here you can define the properties for the representation of the title, like e.g. font type, font size, font color.
|
Data symbol |
Here you can define the properties for the representation of the data, like e.g. font type, font size, font color.
|
|
The * at the beginning of a relate data row identifies the start of a new related data set. |
