Edit Logo

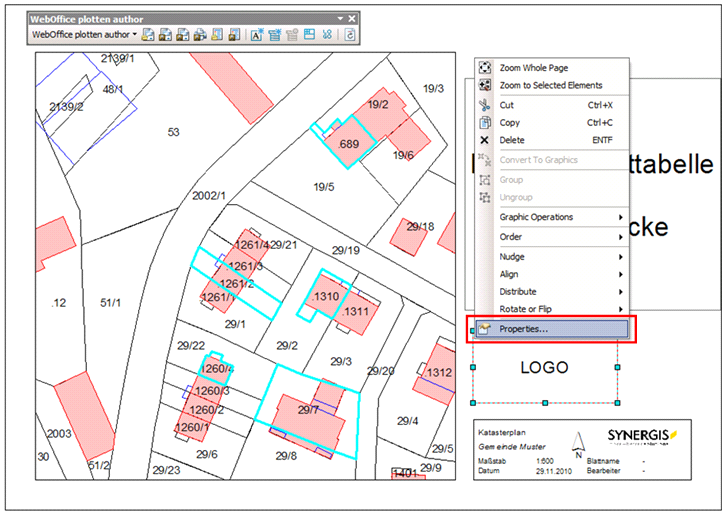

With the right mouse button click on the selected logo element. In the context menu choose Properties.

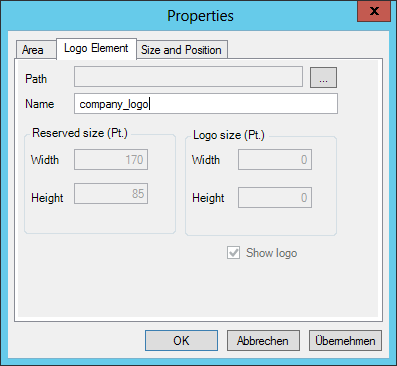

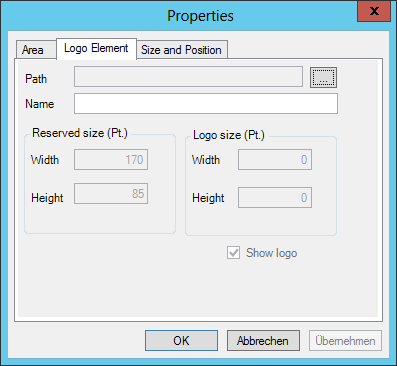

The logo property dialog opens. Under the Logo Element tab, a picture, respectively, a field value for a image which will be defined in WebOffice, can be configured. On the Size and Position tab it is possible to change the size, position and anchor points of the logo.
Menu |
Description |
|---|---|
Path |
Path and name of the logo element. |
Name |
The name of the logo element which is provided to WebOffice as function field. If you for instance define the name for the logo element company_logo, the logo is automatically filled by the value of the predefined function field Logo (Company) in WebAuthor.
|

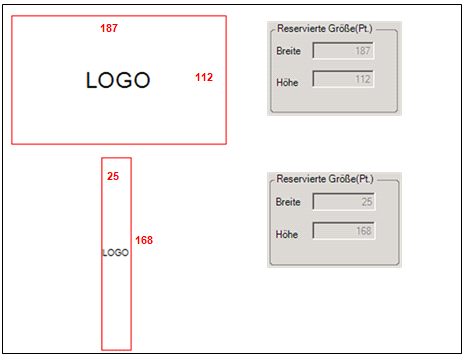

Reserved size (Pt.) |
The logo can be re-sized. Click on the mouse and drag on one of the eight vertices.
|
Logo size (Pt.) |
The logo size is the actual width and height (in Pt.) of the configured image. |

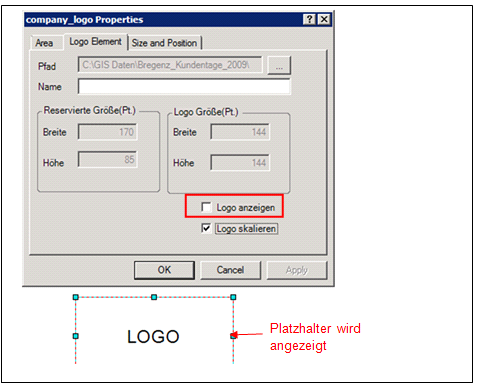

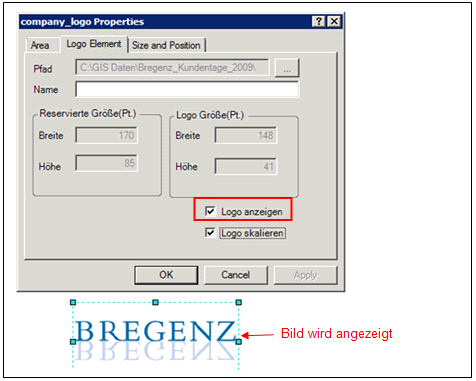

Show logo |
When this option is enabled, the image is directly displayed in the layout. A disabled show logo option inserts a placeholder.
|
to change the size. The adapted size (in Pt.) is automatically taken as reserved size
