The WebService is configured through the Web.config. The Web.config file is by default stored in the web service directory (C:\inetpub\wwwroot\ePaperWebservice).

Use the section <appSettings> to set the following parameter:

•IPAddress
The IP address of the host. By default the IP address is set to 127.0.0.1.

•Port
The port of the host. By default the port is set to 12000.

•MXDPath
Defines the path to the directory where the map documents (MXD) are stored.

•ReportPath
Defines the path to the directory where the ePaper templates (MRT) are stored.

•OutputPath

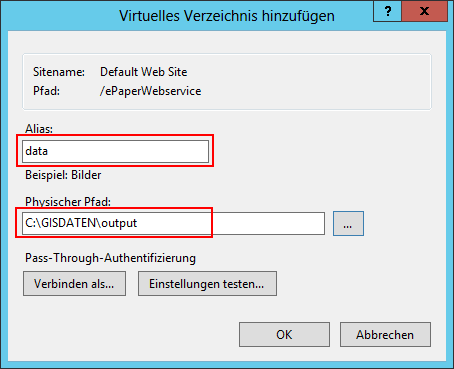

Defines the path to the directory where the generated ePaper reports are stored. Additionally, you have to define the output directory as virtual directory in IIS:


•HttpPath
Defines the URL to view the ePaper reports.

•pdf_jpeg_image_quality
Defines the quality of the images inside a report. By default the quality is set to 0.85.

•cleanup_intervall
Defines the interval in which the generated reports inside the output directory are deleted. By default the interval is set to 10 minutes.

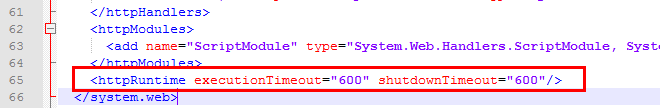

To reduce Timeout errors when creating complex reports, it's possible to change the parameters executionTimeout and shutdownTimeout in Web.config as well:
