Which selection settings must be made so that the display of the selection in the feature/current map in the WebOffice ePaper is correct?



There are three different options for setting the selection. The following section shows which result is achieved on the web and desktop with which setting.

•Option: Using the selection color specified in Selection Options

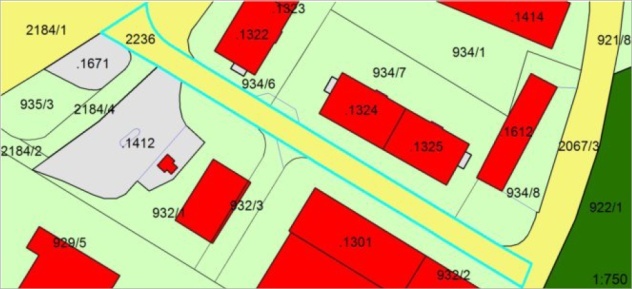

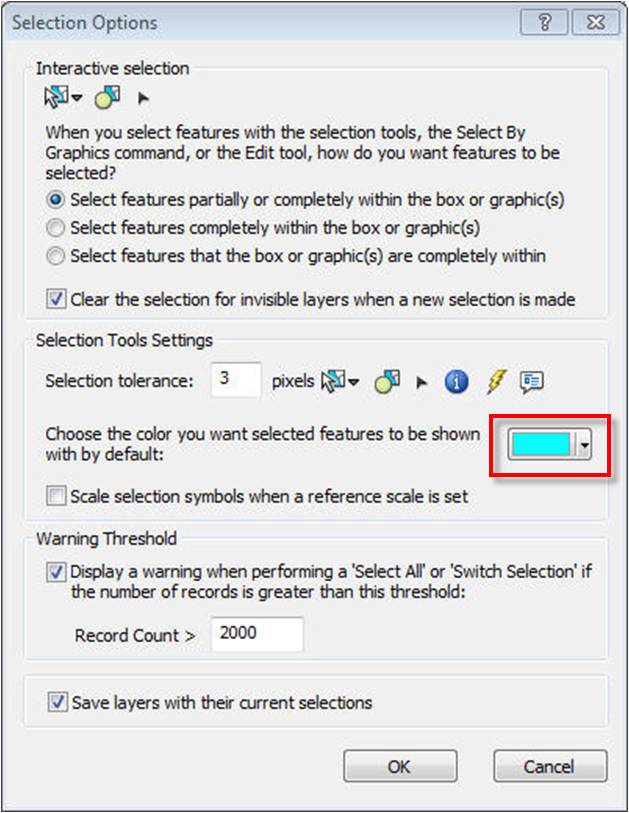

If you keep the default color for selections, this will result in the following display:

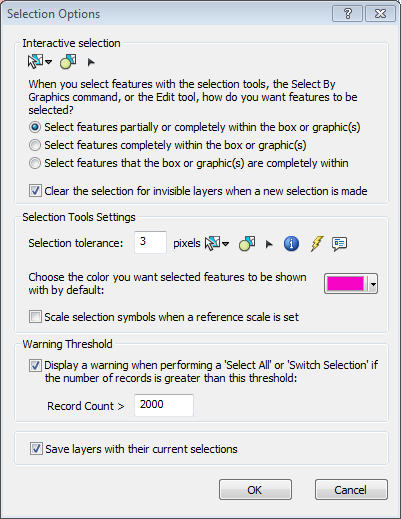

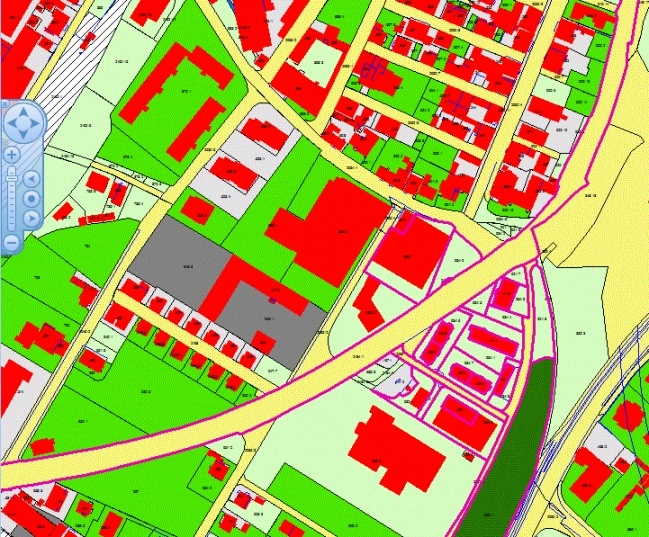

If you change the color of the selection from the default color to e.g. pink, this will result in the following display:




If the default color is changed, the selection for an ePaper created in WebOffice will still be displayed with the default color.

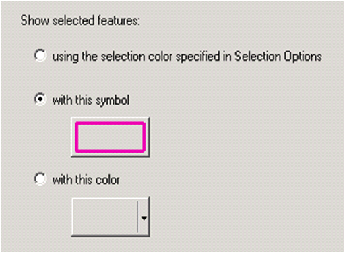

•Option 2: With this symbol
If you use the selection setting with this symbol this leads to the following display:

If this selection setting is selected, the selection is not displayed for an ePaper created in WebOffice

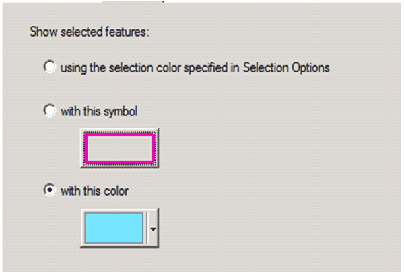

•Option 3: With this color

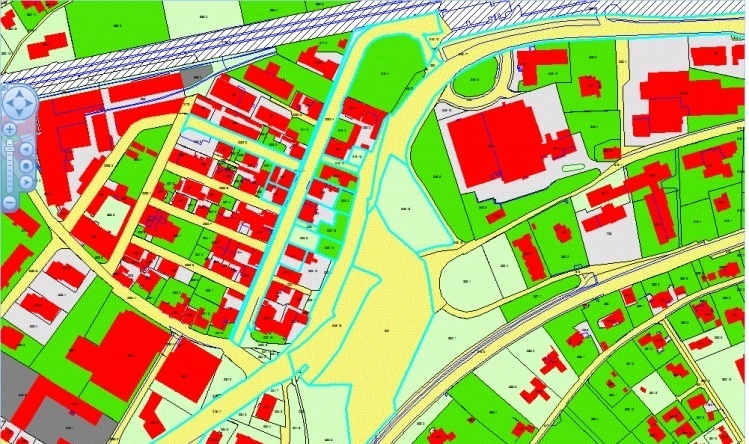

If you use the selection setting with this color this leads to the following display:

If you use this selection setting, the selection will always be displayed correctly.
