A MS Access Connection can be used when you want to create for instance a connection on a Microsoft Access database or a personal geodatabase.

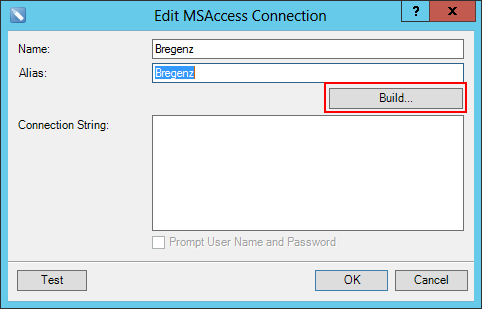

The name and the alias are defined for the MS Access connection. In the next step the connection to the database is created.

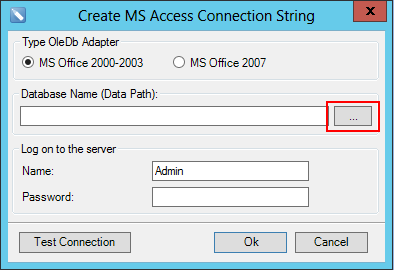

Select the type for the OleDB driver; on one hand the Access database can be an Office 2000-2003 (used driver: Microsoft.Jet.OLEDB.4.0) or an Office 2007 (used driver: Microsoft.ACE.OLEDB.12.0). Load the desired database (.mdb or .accdb) over the data path. In case your database is protected with a password, enter the password for the login.

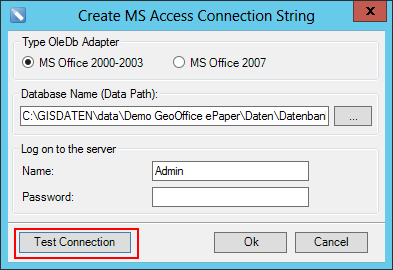

Test the connection with the button Test Connection.

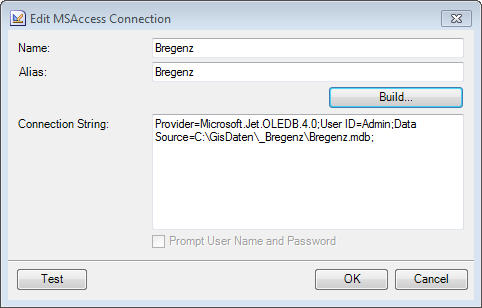

The connection string is displayed in the connection string window.

You can find more information about creating Connection Strings at http://www.connectionstrings.com/.
