Include More Data Sources
This section describes how you embed further data sources. In this example the relation is embedded as additional data source from the GIS data.
|
With relations it is about relation tables from GIS data sources. The same approach applies for newly added data sources (tables or views). |

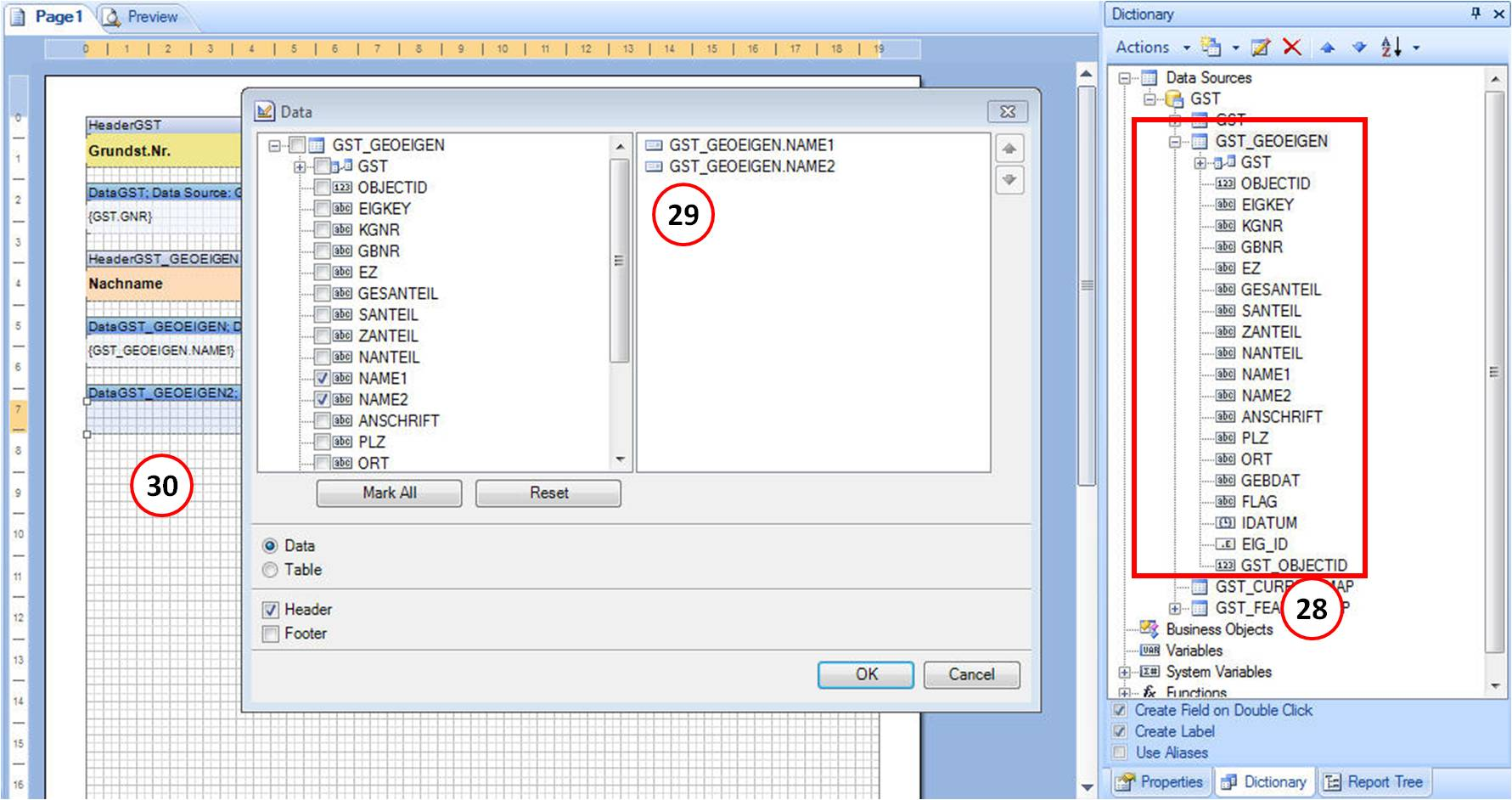

The relation (28) (GST_GEOEIGEN) is inserted by drag & drop. The data of the relation (29) is inserted into the page. The desired data (30) is selected in the data dialog.
Embed relations.

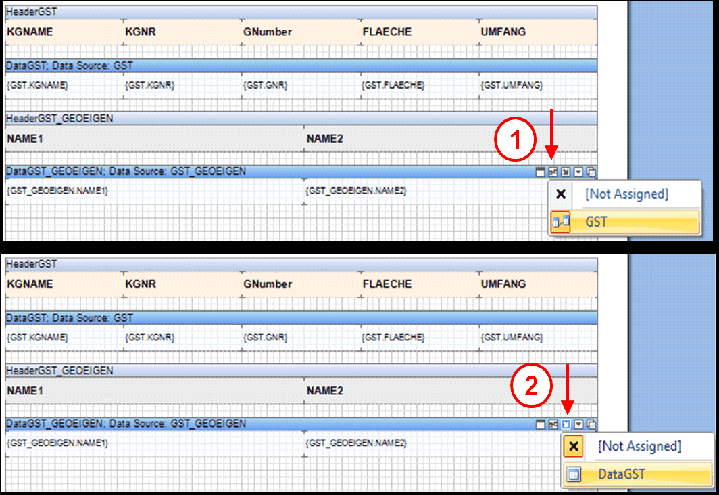

To get the right link it is necessary to assign the relations of the data. Thereby two elements must be assigned:
•Relation (31)
•Master component (32)
Data link

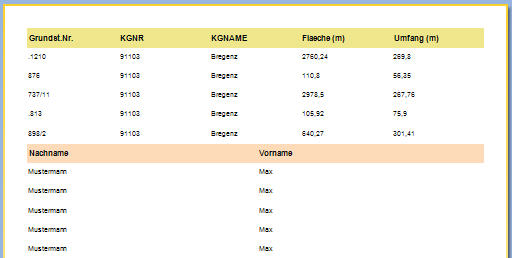

An example illustrates what happens when the link especially of the master component is not done. Data source and relation without link
In the example above the link is not done correctly. The relation data are not listed for each component.

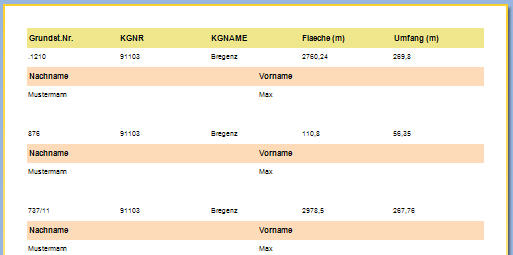

In the second example the link is done. The relation data are listed for each component.
