Current Map

_img204

The current map represents the current extent in the GIS. The current map can be inserted in the CURRENTMAP data band or in other data bands.

_img205

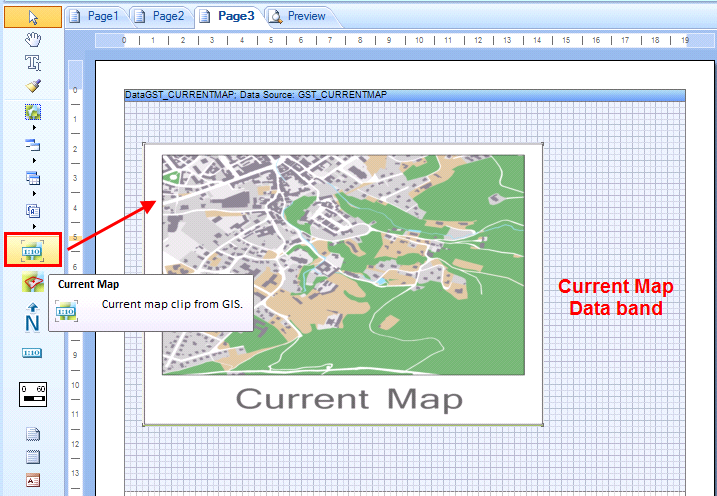

Insert current map

A double click on the inserted map opens the properties of the current map.

A double click on the inserted map opens the properties of the current map.

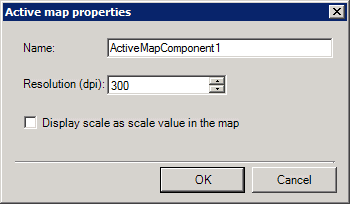

In the Current Map properties dialog limited map settings are available:

Name

Define a name for the current map. This name is used for connecting the north arrow, the scale bar and the scale value to the map.

Resolution

Defines the resolution of the map. By default, this is set to 300 dpi.

Add scale

The scale can bes inserted as scale value in the map. The text is displayed in the right bottom corner of the map.
