Assigning the Feature Map to the Data

To ensure that one map is created for every selected feature, the feature map has to be connected to the data. Therefore two connections must be assigned:

The relation of the Feature Class (22) (second icon).

The data container of the Feature Class (23) (third icon).

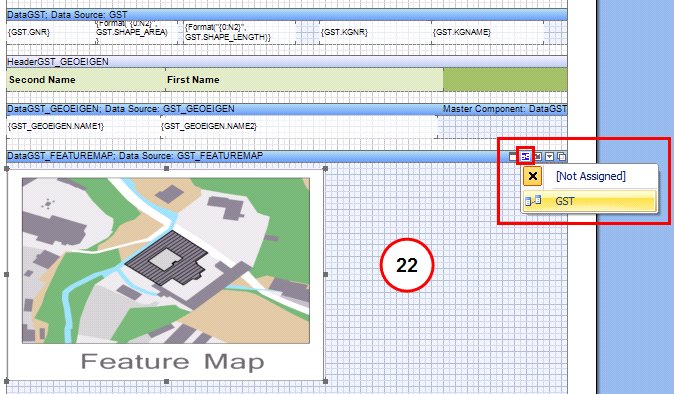

Relating the Feature Map to the Feature Class

Relating the Feature Map to the Feature Class

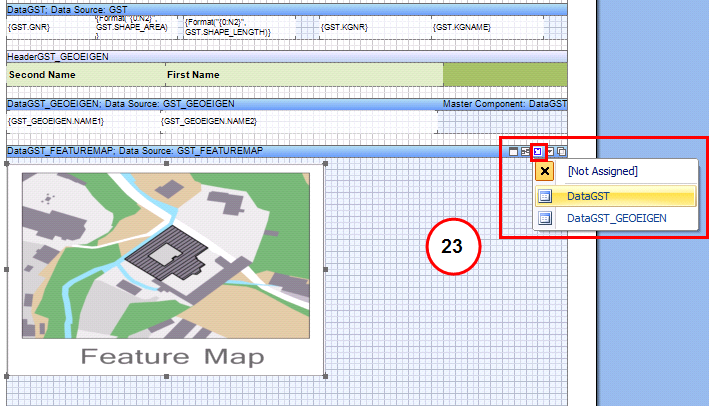

Relating the Feature Map to the container of the Feature Class

Relating the Feature Map to the container of the Feature Class



In the preview you can take a look at the so far designed template.

icon_comment

The map in the preview is only displayed as demo image.

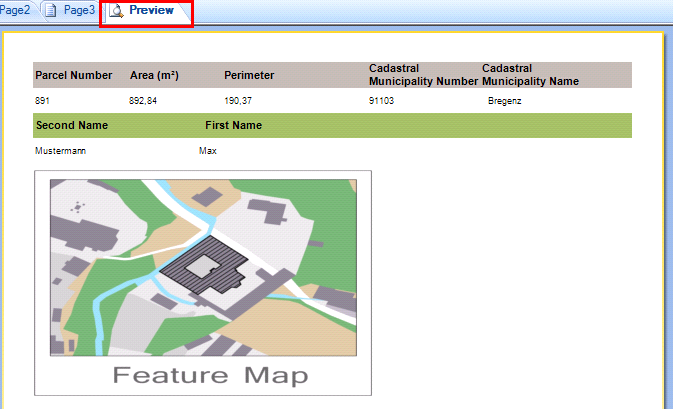

Preview ePaper designer

Preview ePaper designer
