Brush

The current object (e.g. a report title) can be recorded with a hatching and a color.

Brush

Borders

The current object (band, component) can be provided with a border.

Border - Settings

With the feature in the line Border you can set all border properties for a band or a component.

Definition Border and Shadow

Box Label - Display with shadow

Color

Setting the border color.

Display shadow

Enabling or disabling the shadow of the border.

Shadow brush

Select pattern and color for the shadow.

Page

Setting border line for individual pages.

Size

Width of the border.

Format

Select the style of the line for the border.

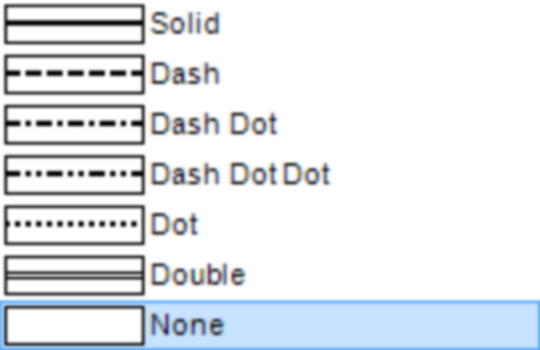

Border - Style of line

Conditions

With Conditions you can make certain formatting depending on the values of the columns. Select the desired object in the page the formatting of which depends on a condition.

With from the Properties window you can create a new condition for an object, e.g. for a data that contains numerical values.

In this data band several values are displayed. The condition is - if one of the values (e.g. surface) is smaller than 400, the data band is entered in a certain color.

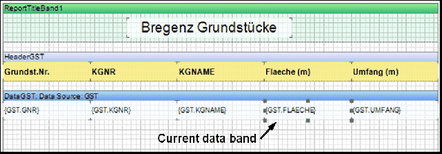

Selected data for condition

The new condition can be created with Add Condition. You can make AND or OR conditions on further columns with Add Layer.

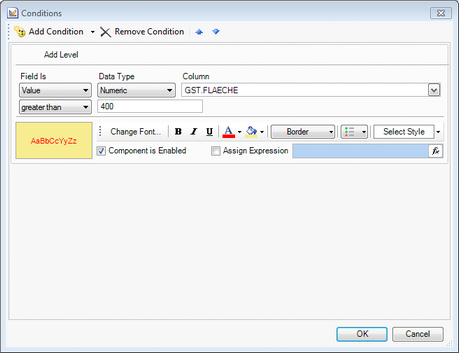

Condition

The properties that are used in case a condition is applied are also set in the Conditions dialog box. These can be text colors, fonts, font sizes, fill patterns etc.

Also a text style can be selected for the condition.

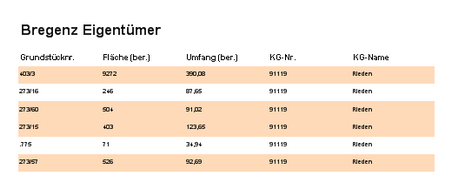

Result of the Condition

Components Styles

Styles can be created in the style designer. A style combines a number of properties such as font, font color, border properties, background, etc.

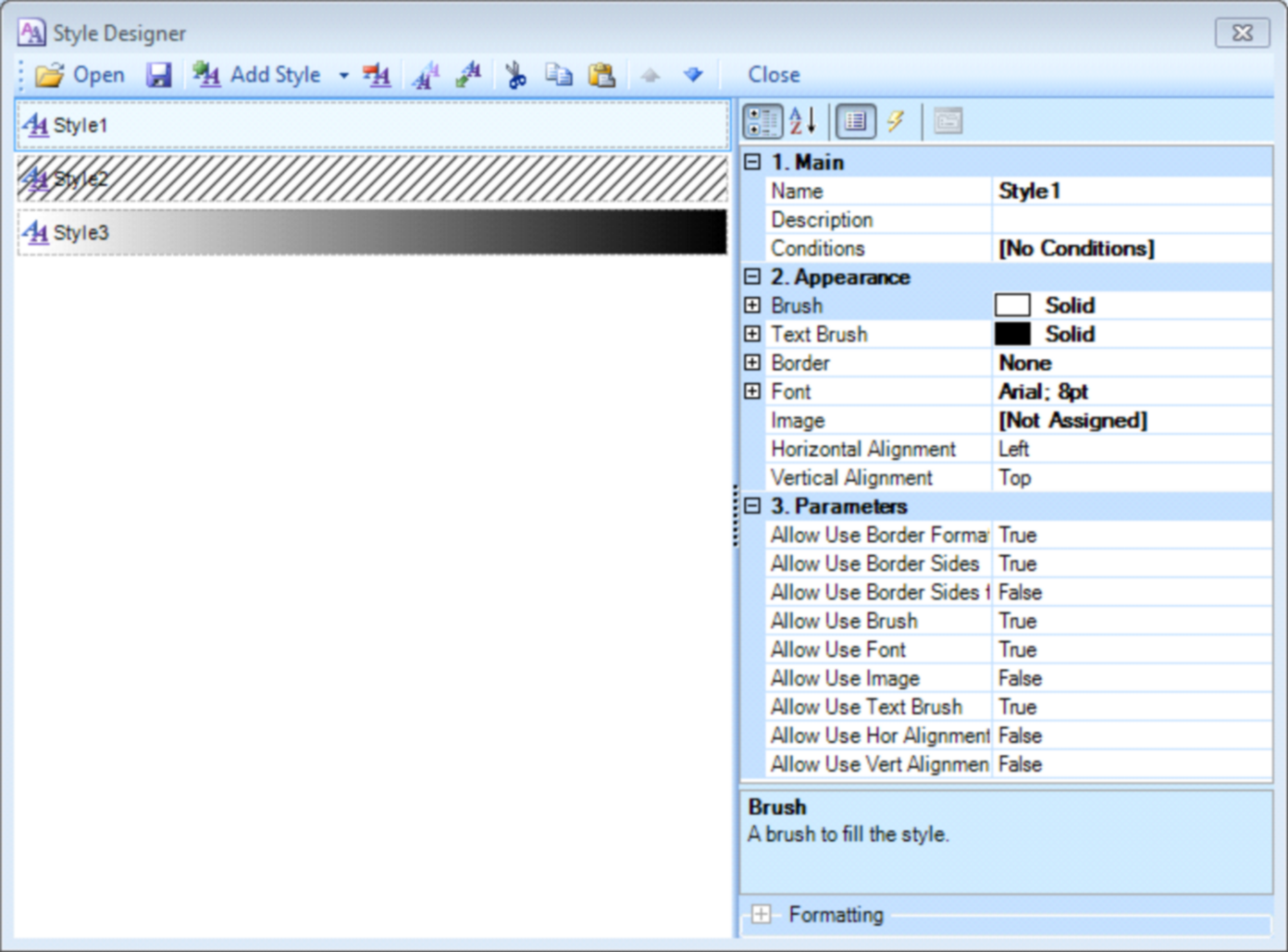

Style Designer
