WebOffice

The menu item WebOffice contains numerous WebOffice 10.9 R2 SP1 - relevant shortcuts like the application configuration as well as SynAdmin, ArcGIS Server Manager, UserManagement Admin Web or the landing page.

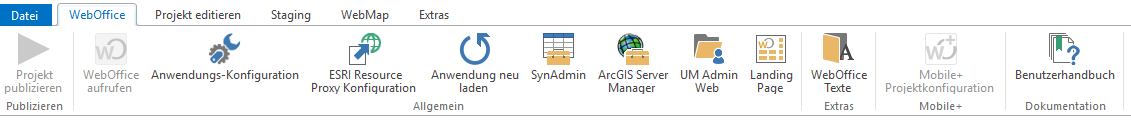

woas_WebOffice_menu

Icon

Menu item

Description

Publish Project

Publishes the currently opened project in the WebOffice 10.9 R2 SP1 application. As a result of successful publishing, a window with the URL of the WebOffice 10.9 R2 SP1 project is displayed. You can click the URL to immediately launch the respective client for this project. To open the project with the WebOffice mobile client, you can also scan the provided QR code.

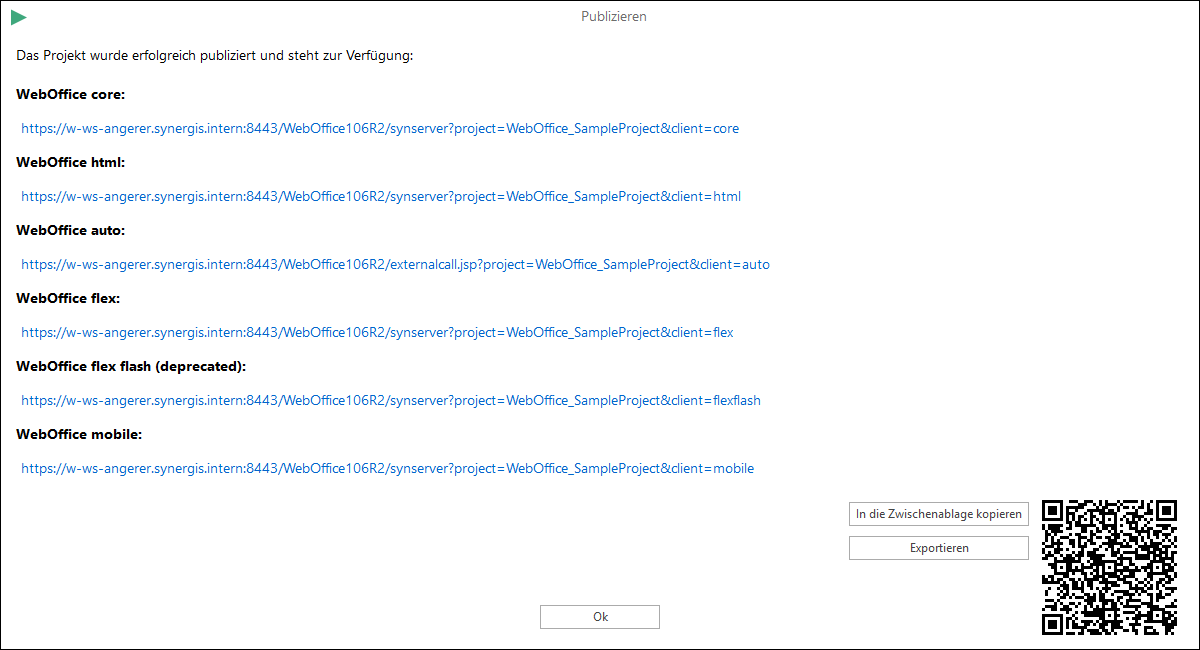

Project publish status and WebOffice 10.9 R2 SP1 project URL

This item is grayed out if no project is open.

Open WebOffice

If you have selected a project, a window with the URL of the WebOffice 10.9 R2 SP1 projects will be displayed. You can choose the URLs of the different clients without publishing the project.

This item is grayed out if no project is open.

Application Configuration

Use this function for opening the WebOffice 10.9 R2 SP1 application configuration. In the application configuration it is possible to control behavior and parameters of the WebOffice 10.9 R2 SP1 applications.

Find more details about the application configuration parameters in chapter Application Configuration.

Every time a parameter in the application configuration has been changed and saved it is necessary to reload the application in order to adopt the new settings.

ESRI Resource Proxy Configuration

This is especially for the 3D view of the WebOffice flex client necessary, for using cached services also in the 3D-views.

Find more details about the ESRI Resource Proxy here: https://github.com/Esri/resource-proxy

Planning information configuration

If a planning information configuration is defined in settings, it is possible to open this menu in order to configure your planning information settings.

Reload application

This function restarts the entire WebOffice 10.9 R2 SP1 application again.

Reload the application in case you have changed the application configuration.

SynAdmin

Use this function for opening the WebOffice 10.9 R2 SP1 administration pages directly from WebOffice author standalone.

ArcGIS Server Manager

Use this function for opening the ArcGIS Server administration pages directly from WebOffice author standalone.

•The list of ArcGIS Server Publisher users are read from the application configuration. If more publisher users are configured, there will be an option to choose from different ArcGIS Server admin pages.

•The following connections are excluded from the selection list and cannot be selected: *.argisonline.com, *.arcgis.com

UM Admin Web

Use this function for opening the WebOffice usermanagement administration pages directly from WebOffice author standalone.

Landing Page

Use this button to start the browser with the landing page.

The modern Project selection must be activated and a Landing page configuration must be present in the application configuration. Otherwise the button will open the traditional project selection.

Customize Language Bundle

This options is used to override the WebOffice default messages of the WebOffice core client. The changes are saved in the file <WebOffice application>\client_core\language_weboffice_user.xml and are preserved even after a service pack or patch is applied.

Mobile+ project configuration

If a Mobile+ project directory is defined in File > Settings and the opened project is suitable for Mobile+, you can change the Mobile+ project configuration here.

User manual

This opens the user manual of the application in the browser WebOffice 10.9 R2 SP1 application.
