Using export profiles, a data export can be started from a selection or a search result. To do this, configure the Export Profiles node below a layer query. Within this node you can now create 1 to n export profile configuration elements.



icon_comment

•First, configure the export profiles that should be available in the WebOffice 10.9 R4 project with the export tool. Details can be found in the chapter WebOffice extract server - Datenextraktion.

•Note, that the extract functionality must also be enabled on the corresponding search result.

•Currently exporting from a search result only supports the main map projection.

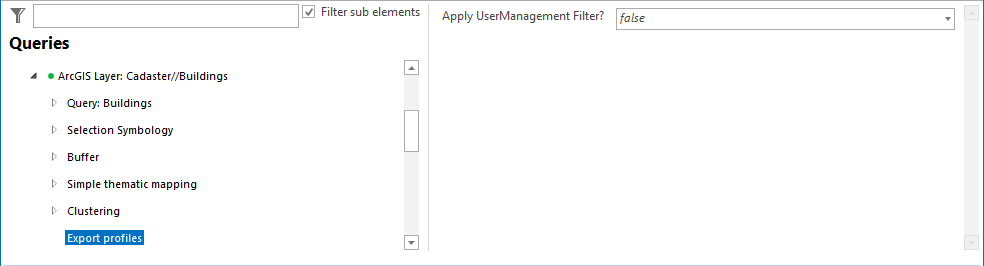

Export profiles

Export profiles





Property

Description

Apply UserManagement Filter?

Specifies if filters (attributive Filter / Restrictions for Layers) defined in UserManagement are applied when exporting.

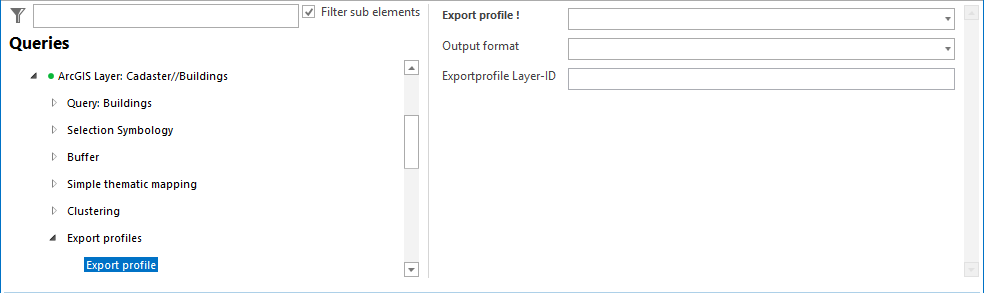

Export profile

Export profile



Property

Description

Export profile

Export profile reference - WebOffice extract server - Datenextraktion.

Output format

Desired output format.

icon_comment

If at this point an output format is defined that is not permissible for the particular export profile,

the first configured output format will be used.

Exportprofil Layer-ID

If the export profile contains a Layer-ID different to the default Layer-ID (TopLevelGroup//Layername) it can be overridden by configuring this value.
