You will find some very useful tools in this menu point.



icon_comment

Some tool are only available in debug mode, which can be activated in the basic settings.



woas_extras

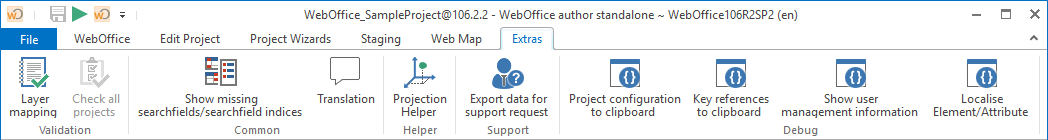

WebOffice author standalone extras menu



Icon

Menu Item

Description

woas_extras6

Layer mapping

This feature is very useful if you need to change an ArcMap document and already have an existing WebOffice 10.9 SP1 project based on an older version of the ArcMap document. By using Layer mapping, you can ensure error-free and complete layer and table referencing for your WebOffice 10.9 SP1 project.

woas_extras7

Check all projects

Provides the ability to check project configurations in your project directory.

icon_comment

In order to use this function, you must not have opened a project.

woas_extras5

Show missing searchfields/searchfield indices

This function lists the services of all included projects and indicates missing search fields or search field indices of the layers.

woas_extras1

Translation

The translation tool translates the project-, application- or ESRI resource proxy configuration for you.

woas_extras2

Projection Helper

The Projection und Geotransformation Helper 1.5.1 is the easiest way configure projections in your WebOffice 10.9 SP1-Project.

woas_extras3

Export data for support request

This tool allows you to export all necessary files as a ZIP-file for the WebOffice 10.9 SP1-Support. By default the version number, operating system, log files, settings, saved application configuration (+schema), the configuration schema and the current project (if opened) will be exported.



It is also possible to export all projects in the WebOffice 10.9 SP1 project directory as well as the UserManagement.



icon_comment

You can also export an ArcMap-Project (.mxd) or an ArcGIS Pro-Project (.aprx) as well as an ArcMap-Map Package (.mpk) or an ArcGIS Pro-Project package (.ppkx) or a Screenshot.

woas_extras4

Project configuration to clipboard

This tool copies the contents of the project configuration (xml file) to the clipboard.

icon_comment

This tool is only available in debug mode, which can be activated in the basic settings.

woas_extras4

Key references to clipboard

This tool copies key references to the clipboard

icon_comment

This tool is only available in debug mode, which can be activated in the basic settings.

woas_extras4

Show UserManagement information

This tool displays the contents of the UserManagement database, which can be particularly useful for debugging the UserManagement database.

icon_comment

This tool is only available in debug mode, which can be activated in the basic settings.

woas_extras4

Localise Element/Attribute

This tool makes it possible to localize all elements or attributes in WebOffice author standalone by one input.

icon_comment

This tool is only available in debug mode, which can be activated in the basic settings.

WebOffice author standalone: extras menu
