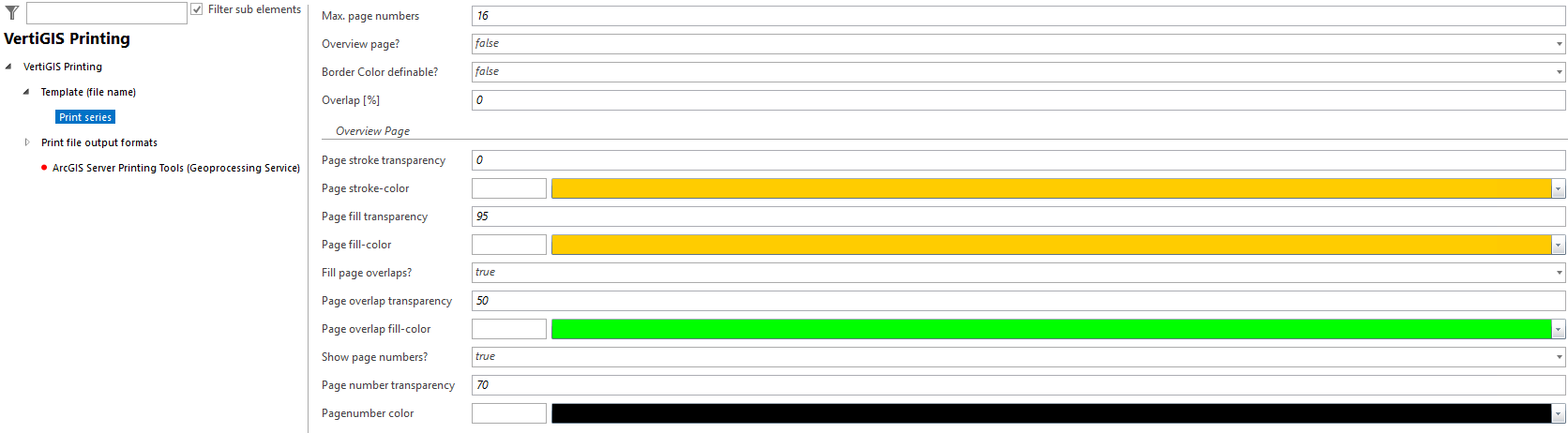

Configure the Print Series function to create print output containing multiple pages with the same scale.



woas_esri_print_template_file_name_print_series



Property

Description

Max. page numbers

Maximum numbers of pages

Overview page

Specifies inclusion of overview page in the print series.

icon_comment

In order to provide an overview page for the print series, make sure that a copy of the respective print template exists in the WebOfficePlotTemplates directory with the nomenclature <WebOffice print template name>_overview.layout.

Example:

WebOffice plot template name: A4_portrait.layout

required overview template: A4_portrait_overview.layout

Border Color definable?

Specifies whether the border color of the overview page is definable (Yes) or not (No). Activating this function will result in a color picker that is provided to the user in the toolbar.

Overlap [%]

Overlap percentage of specific print pages. Used only if the user provides a plot grid as input on the client side (overlap parameter is not applied when printing a selection of objects). Useful values vary between 0 (0% overlap) and 50 (50% overlap).

icon_comment

This parameter may also be manipulated in the WebOffice core client print form by the user.

Page stroke transparency

Stroke transparency of the page borders

Page stroke-color

Stroke color of the pages on the overview page

Page fill transparency

Transparency of the page fill color

Page fill-color

Fill-Color of the pages on the overview page

Fill page overlaps?

Should overlaps of pages on the overview page be filled with color?

Page overlap transparency

Transparency of the page overlap area

Page overlap fill-color

Fill-Color of the overlaps of the pages on the overview page

Show page numbers?

Should Page numbers be printed on the overview page?

Page number transparency

Transparency of the page numbers

Pagenumber color

Color in which the page numbers should be printed on the overview page
