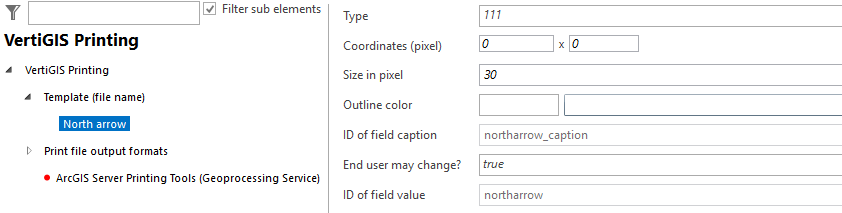

Configure the function field North arrow if you want to display a north arrow on your print output.



woas_esri_print_template_file_name_northarrow



Property

Description

Type

Type of north arrow according the Unicode number of the 'Esri North' True Type Font.

Coordinates (pixel)

Coordinates (in pixel) of north arrow from lower left corner of map window.

Size in pixel

Size (in pixel) of north arrow.

Outline color

Outline color of north arrow

ID of field caption

The ID for this predefined function field is always northarrow_caption.

End user may change?

Specifies whether the user may change or set the value in the print tool form..

ID of field value

The ID for this predefined function field is always northarrow.



Make sure that your print template (.pagx file) contains the function field northarrow_caption and northarrow. Only then, the configuration in WebOffice author standalone will have an impact.
