Configure the function field Fax if you want to display an fax number on your print output.

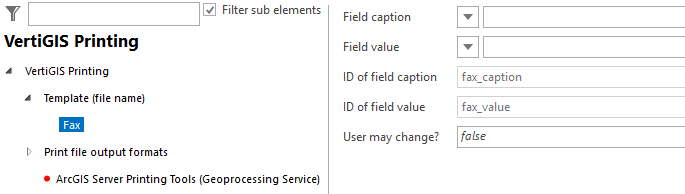

woas_esri_print_template_file_name_fax



Property

Description

Field caption

Caption in print template. Standard ratios are applied if there are no language-specific terms are specified.

Field value

Value in print template.

icon_comment

If User may change? is set to Yes you may also provide a list of possible values to the user. Use the | symbol as delimiter between the possible values, e.g. fax number 1|fax number 2. The first value will be the default value. If you want to provide several values but no default value start your listing with a | symbol, e.g. |fax number 1|fax number 2.

ID of field caption

The ID for this predefined function field is always fax_caption.

ID of field value

The ID for this predefined function field is always fax_value.

User may change?

Specifies whether the user my change or set the value in the print tool form (Yes) or not (No).

FAX number properties



Make sure that your print template (.pagx file) contains the function fields fax_caption and fax_value. Only then, the configuration in WebOffice author standalone will have an impact.
