Configure the function field Country if you want to display a country name on your print output.

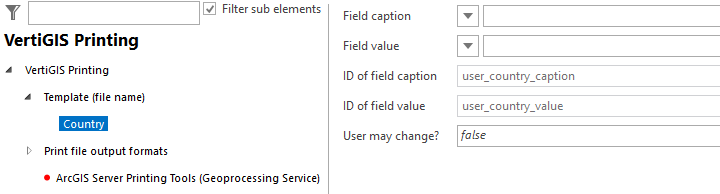

woas_esri_print_template_file_name_country



Property

Description

Field caption

Caption in print template. Standard ratios are applied if there are no language-specific terms are specified.

Field value

Value in print template.

icon_comment

If User may change? is set to Yes you may also provide a list of possible values to the user. Use the | symbol as delimiter between the possible values, e.g. country 1|country 2. The first value will be the default value. If you want to provide several values but no default value start your listing with a | symbol, e.g. |country 1|country 2.

ID of field caption

The ID for this predefined function field is always user_country_caption.

ID of field value

The ID for this predefined function field is always user_country_value.

User may change?

Specifies whether the user my change or set the value in the print tool form (Yes) or not (No).

Country properties



Make sure that your print template (.pagx file) contains the function fields user_country_caption and user_country_value. Only then, the configuration in WebOffice author standalone will have an impact.
