ArcGIS Server ePaper Service

<< Click to show table of contents >>

Use a specific ArcGIS Server ePaper Service if you need some specific configuration within your output service. Otherwise, it is recommended to configure one central ArcGIS Server Output Service in the map elements section. In case you want to configure a specific ePaper service, make sure that you activated the Server Object Extension for the specified service.

Find details regarding the activation of the Server Object Extension in chapter Activate SOE on a Map Service.

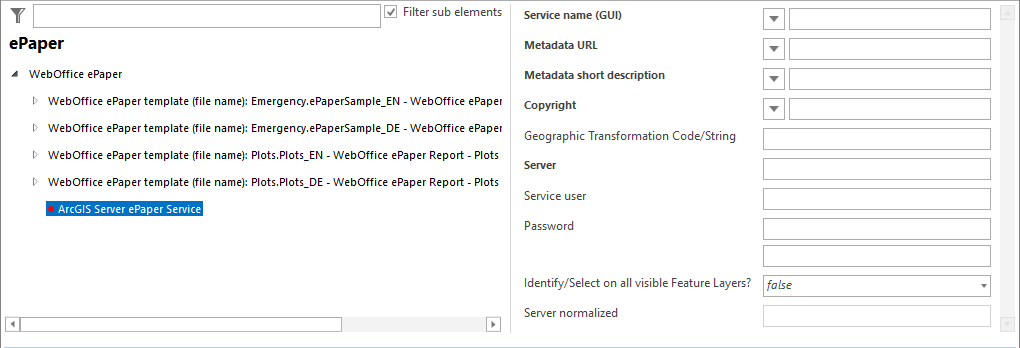

ArcGIS Server ePaper Service configuration

Property

Description

Service name (GUI)

Service name of ePaper service displayed in the GUI.

Metadata URL

Configure a reference to a metadata document (must be available via HTTP) as URL.

You may configure the unique Metadata document identifier (UUID) of a Catalog Service (CSW 2.0) here. In this case you must configure the SOAP interface of the Catalog Services in Metadata Display.

Metadata short description

Allows a short description of the metadata. Word wrap can be accomplished with a \n.

Service specific copyright text to be added to the configured project copyright if the map service contributes to the map.

The service specific copyright will only be displayed if the map element Copyright is configured.

Detailed information about the use of these attributes can be found in chapters Template (File Name) and WebOffice ePaper Template (File Name).

Geographic Transformation Code/String

Geographic transformation code from WGS84 to the map coordinate system. Can be reviewed in ArcGIS_Desktop_Installation_Folder\Documentation\geographic_transformations.pdf. If a custom transformation is used, the transformation string with parameters can be used. Copy and paste from the .gtf file is recommended.

If a geotransformation is already defined on the data frame of the main map service, the geotransformation configured here will not be applied.

Server

Specifies URL of ArcGIS Server ePaper Service.

Example:
http://>myserver</ArcGIS/rest/services/<my Service>/MapServer

Service user

User login for accessing the ArcGIS Server service (ArcGIS service user) in case access to the service has been restricted in ArcGIS Server Manager.

Password

Password of the ArcGIS Server service user that is allowed to access the service.

Identify/Select on all visible Feature Layers?

When using the option All visible Layers in the Client all Layers visible in the current scale and set to visible are taken into consideration.

A Layer configuration is not required, the ArcMap Layer Properties get used instead (Layer Name, visible Fields, Field order)

Server normalized

Normalized server URL (not configurable)

ArcGIS Server ePaper Service properties

See chapter ArcGIS Server Output Service for details about the configuration of a general output service.
