WFS Service
Enter the WFS service URL.

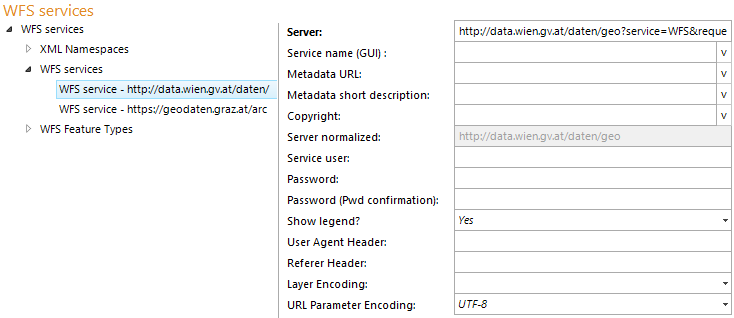

WFS service URL configuration
Property |
Description |
Server |
For OGC WFS services the complete service address (URL) needs to be provided. No additional parameters (e.g. &service=WFS) are needed. |
Service name (GUI) |
No effect on WFS.. |
Metadata URL |
No effect on WFS.. |
Metadata short description |
No effect on WFS.. |
Copyright: |
No effect on WFS. |
Server normalized |
normalized Server URL. |
Service user |
User name of user accessing WFS service. Hint: If a domain user is used for accessing the service, then the windows domain needs to be provided in the format domain\user. If no domain is configured then authentication will be done locally. |
Password |
Password |
Show legend? |
Specifies whether it is possible to display the legend of the service, if the service provides a legend information. |
User Agent Header |
Defines the value of the HTTP User Agent Header for server-side requests. |
Referer Header |
Defines the value of the HTTP Referer Header for server-side requests. |
Defines if special Characters (e.g üöäÜÖÄß etc.) in the OGC Layer Names are sent as URL encoded Characters. |
|
URL Parameter Encoding |
Defines which encoding should be used for the URL parameters. The encoding will only be applied to GET calls. |
WFS services - project structure overall
Note: Map service properties have no effect on OGC WFS services!
Note: See the How To chapter WFS Services for information how to get the WFS schema file.
Note: See also chapter XML Namespace and WFS Feature Type.
