The Raster Info tool enables the user to query for raster values. It is possible to retrieve pixel values from 1 band raster layers by clicking into the map after having selected a specific raster layer. The Rasterinfo Tool must be configured in the Tool list.



Note: This tool supports the querying of raster information of external services. The query of external raster services is currently only supported for the tool Raster Info. The external raster service have to be a MapServer service.

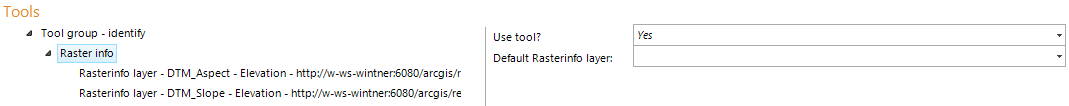

Raster info tool configuration

Raster info tool configuration



Property

Description

Use tool?

Controls whether this tool is available in the WebOffice 10.9 R4 clients or not.

Default Rasterinfo layer

Specifies the raster info layer that will be selected by default.

Raster info tool properties

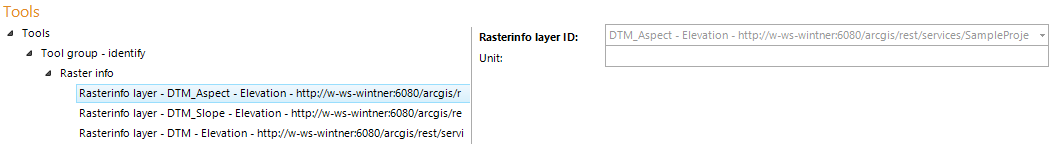

Raster info layer configuration

Raster info layer configuration



Property

Description

Rasterinfo Layer ID

Unique ID of layer to be used for Rasterinfo tool

Note: Specify a Layer Name in order to have an alias name displayed in the list of rasterinfo layers.

Unit

Specifies the unit of the retrieved pixel value. The unit is displayed in the user interface.

Raster info layer properties



Note: Only layers of type raster will be considered for this tool.

Note: See chapter Raster Info for the tool appearance in the WebOffice html client.

Note: If you have problems with the tool see also chapter Rasterinfo.
