Configure the Export Map Image tool to copy a screenshot to the clipboard or MS Word. The resolution may be configured (not only screen resolution possible).



Note: The Export Map Image tool runs via Server Object Extension as soon as markups (e.g. with Measure/Markup tools) are included in the map; otherwise via standard ArcGIS Server.

Note: It is possible to create your own ArcGIS Server map export service as a sub node of this tool. If configured the service will be used for map export in WebOffice 10.9 R4 (otherwise handled by ArcGIS Server Output Service). The Map Export Service must provide a configured Server Object Extension for WebOffice.

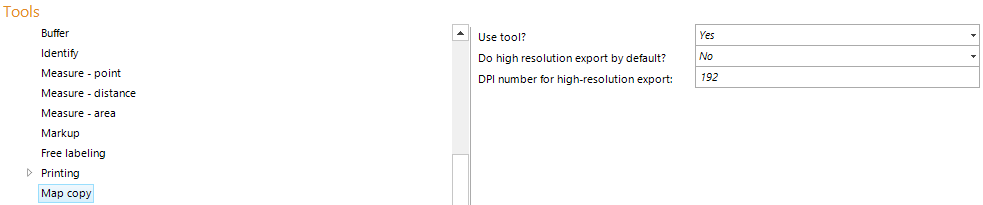

Export Map Image tool configuration

Export Map Image tool configuration



Property

Description

Use tool?

Control if this tool is available in the WebOffice 10.9 R4 clients or not.

Do high resolution export by default?

Specifies whether exports should use the high resolution defined in the parameter below or the default 96 DPI.

DPI number for high-resolution export

Resolution (in DPI) for Export in high resolution.

The value is usually a multiple of 96 (192 or 288). The low resolution export works with the resolution of the screen (96 DPI). An export with less than 96 DPI is not allowed.

Export Map Image tool properties



In case you want to provide a high resolution export (DPI: 288), be sure that all services involved in the map export, have the necessary image dimension values configured.



Configure sufficient image dimension values for high resolution map export

Configure sufficient image dimension values for high resolution map export



Note: See chapter Image Blending for details about the configuration of image blending settings in the application configuration.

Note: See chapter Export Map Image for the tool appearance in the WebOffice html client.
