The tool VertiGIS Printing allows the user to create high-quality print documents in various file output formats, sizes and resolutions based on a geoprocessing service. Use, for example, the geoprocessing service PrintingTool that was automatically created during the installation of ArcGIS Server. If you want to use this PrintingTool, then assign the value Export Web Map Task in the configuration of the attribute Geoprocessing Task ID.



ArcGIS Server standard PrintingTool

ArcGIS Server standard PrintingTool



The PrintingTool include the following templates by default:

•A3 (portrait/landscape)

•A4 (portrait/landscape)

•Letter ANSI A (portrait/landscape)

•Tabloid ANSI B (portrait/landscape)

•only map



Note: The templates for this PrintingTool will be read from the ArcGIS Server installation directory (e.g. C:\Program Files\ArcGIS\Server\Templates\ExportWebMapTemplates). Additional templates may be saved as a *.mxd file here and can be configured as Template (File Name).



The PrintingTool supports the following output formats:

•PDF

•PNG32

•PNG8

•JPG

•GIF

•EPS

•SVG

•SVGZ



Note: Output formats may be configured for the PrintingTool in Print File Output Formats.

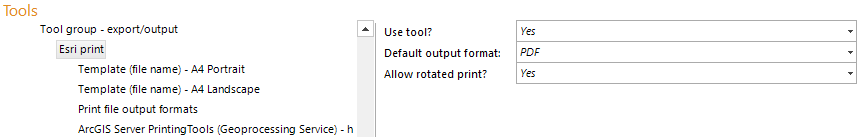

Esri print configuration

Esri print configuration



Property

Description

Use tool?

Control if this tool is available in the WebOffice 10.9 R4 clients or not.

Default output format

Specifies the default output format used for VertiGIS Printing.

Allow rotated print?

Defines if the user is allowed to rotate the print extent in the tool form.

VertiGIS Printing properties



Note: VertiGIS Printing can be used in both WebOffice core client and WebOffice flex client.

Note: VertiGIS Printing does not offer as many functionalities as WebOffice print. For details on configuration in WebOffice author see chapter Print.

Note: The scenario that both, the VertiGIS Printing and the WebOffice 10.9 R4 default Print are configured, is possible with WebOffice 10.9 R4 but is not an officially supported scenario.
