Configure the ArcGIS Service tool to give users the option to add ArcGIS Services into the WebOffice 10.9 R4 project. Either configure only the tool, so the user can enter the URL himself or predefine a list of ArcGIS Online services to be chosen from.

Note: An ArcGIS Online/Server service that already exists in the Map Collection cannot be configured in the list of ArcGIS Online/Server services too.

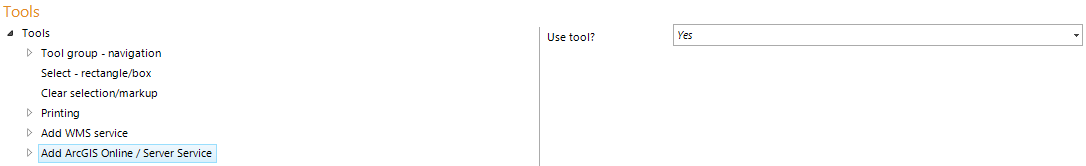

ArcGIS Service tool properties

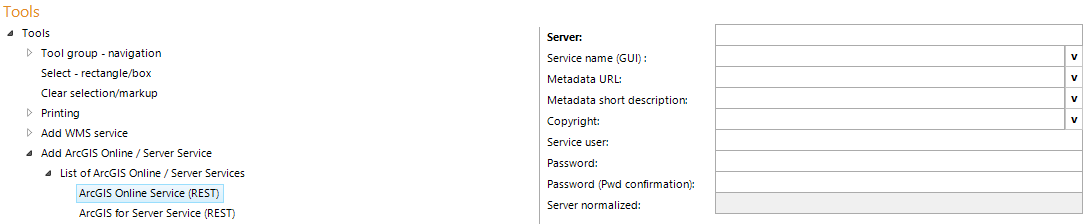

If you want to provide a list of predefined ArcGIS Online/Server services the user is to be allowed to choose from, configure the List of ArcGIS Online/Server Services element that can contain one or multiple ArcGIS Online/Server services. A list of predefined services may be comfortable for the user, if he has to use specific services frequently. You can add both dynamic and cached ArcGIS Online/Server services into a dynamic project.



Note: Full product support only for services from version 10.1 on.

Note: If the service is secured, the user has to enter credentials before using the service in the client.

Note: The particular service has to allow the operation query.





In this list you can add an

•ArcGIS Server Map Service

•ArcGIS Online Service (REST)



Note: See chapter ArcGIS Service for details about adding ArcGIS Services in the WebOffice html client.

Note: See chapter ArcGIS Service for details about adding ArcGIS Services in the WebOffice mobile client.
