Scale Bar
The Scale Bar gets displayed on top of the main map. If no unit label is defined then m is used instead as default.

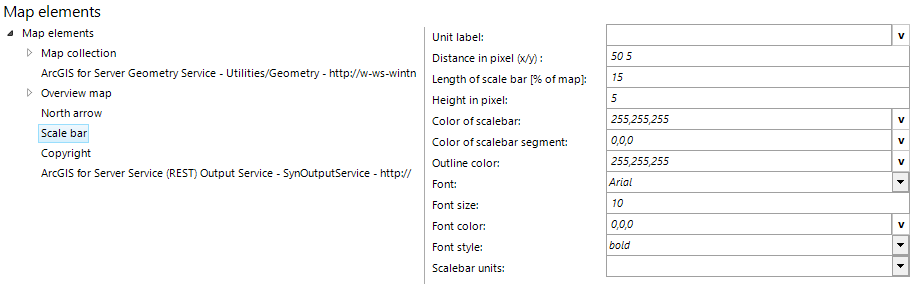

Scale bar configuration
Property |
Description |
Unit label |
Unit label shown in the scale bar. |
Distance in pixel |
Distance of the scale bar to the bottom right of the map. Coordinate base (0 0) is bottom right. |
Length of Scale bar |
Length of scale bar in percent of the map image width. |
Height in pixel |
Height of scale bar in pixels. |
Color of scale bar |
Color of scale bar. |
Color of scale bar segment |
Color of scale bar segment. |
Outline color |
Background color of scale bar. |
Font |
Font. |
Font size |
Font size. |
Font color |
Font color. |
Font style |
Font style. |
Scalebar units |
Units used for calculation of scale bar separators and scale bar length caption. Note: If this field is empty, then the map unit will be used for representation of the scale bar. |
Scale bar configuration
Note: For printing a scale bar you must insert a scale bar Layout element in the ArcMap Layout.
Note: See chapter Main Map Display for the appearance of scale bar in the WebOffice html client.
