Use the North Arrow element for specifying the north arrow displayed on top of the map.

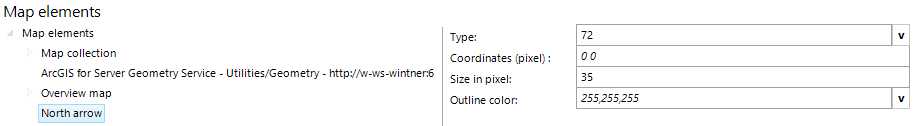

North arrow configuration

North arrow configuration



Property

Description

Type

North arrow for main map according to ESRI North Regular True Type Font.



ESRI North Regular font

ESRI North Regular font



Coordinates in pixel

Coordinates (in pixel) of north arrow from lower left corner of map window.

Size in pixel

Size of north arrow (in pixel).

Outline color

Outline color of north arrow.

North arrow properties



Note: For printing a north arrow you must insert a north arrow layout element in the ArcMap layout.

Note: See chapter Main Map Display for the appearance of north arrow in the WebOffice html client.
