The TOC (table of content) in the WebOffice html client shows the full content of the map collection (map services, group of map services, group of layers, layers), depending on the currently activated View. If you do some changes in the TOC, the currently activated view will change to <User Defined>.



Note: If you don't have any map views configured, the content of the TOC will be configured in Table of Content (TOC).

Note: WebOffice 10.9 R4 clients control the display of map services using a timeout. If the map service is not able to provide a response to the image request in time, then no content gets displayed for this map service and it gets marked with an red expression mark.

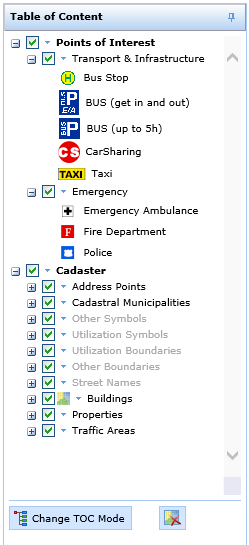

TOC in WebOffice html client

TOC in WebOffice html client



Buttons

Description

html_toc02

Static or dynamic display of the TOC:

- dynamic: shows all layers and services (also out of scale)

- static: shows only layers and services in scale

html_toc03

Reset all layers to default mapping





The Context menu opens additional options for the entries in the TOC.
