In the options of the dialog for user-defined symbolization, the following attributes can be selected when selecting a simple point object (Simple). The following table describes the attributes.

Property

Description

Offset X

Defines the offset of the point symbol on the X axis in points (e.g. 12pt / pixels (e.g. 12px). By default, without specifying the format unit, Points is used as the size unit.

Offset Y

Defines the offset of the point symbol on the Y axis in points (e.g. 12pt / pixels (e.g. 12px). By default, without specifying the format unit, Points is used as the size unit.

Angle

Defines the angle in degrees to the display.

Type

Determines the point type based on predefined elements. This selection can currently be selected based on the following Esri point styles:

•circle

•cross

•diamond

•square

•x

Point Width

Defines the thickness of the point in pixels.

Point Color

Defines the color of the point object. The user can determine the color via a color dialog by clicking, entering a HEX color code or RGB color code.

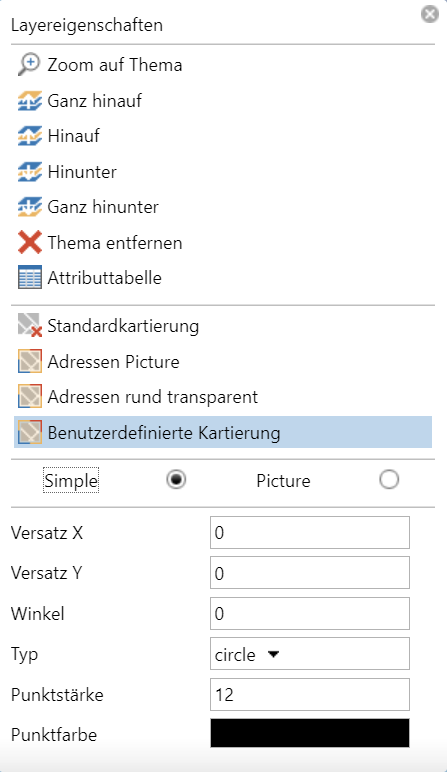

core_Layer_properties_mapping_points

Dialog for selecting the symbolization style and user-defined symbolization for point objects



In the options of the dialog for user-defined symbolization, the following attributes can be selected when selecting a Picture marker. The following table describes the attributes.

Property

Description

Offset X

Defines the offset of the point symbol on the X axis in points/pixels.

Offset Y

Defines the offset of the point symbol on the Y axis in points/pixels.

Angle

Defines the angle in degrees to the display.

Image URL

Defines the URL to the picture around the Picture icon (e.g https://xxxx.xxx/image.png). Image elements and SVG documents can be referenced here. SVG documents must include a definition of height and width.

icon_warning

ACHTUNG!

Animated SVG images are not supported.

The corresponding default style is passed initially in binary format.

Image Height

Defines the image height in points (e.g. 12pt) / pixels (e.g. 12px). By default, without specifying the format unit, Points is used as the size unit.

Image Width

Defines the image width in points (e.g. 12pt / pixels (e.g. 12px). By default, without specifying the format unit, Points is used as the size unit.
