With WebOffice 10.9 R3 it is possible to display a ArcGIS Web Scene, which is especially useful to make 3D data available for visualization and analysis purposes. ArcGIS Web Scene is implemented in WebOffice 10.9 R3 as a custom tool based on a script API.

Note: More information on this topic can be found in the ArcGIS Online Help.



Clicking on the configured Web scene button opens a window, which stretches over the right half of the main map area. In addition, the Ribbons and Project Center are hidden to enlarge the main map area.

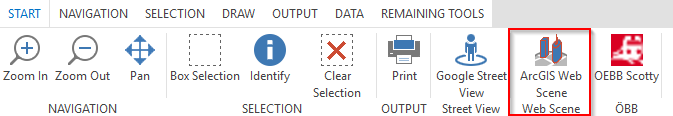

Web scene button

Web scene button



Navigation in the Web scene window can be done using mouse and navigation elements located at the upper left edge of the Web Scene window. In addition, different functions are offered for the Web Scene, which can be selected in the left area of the window. In addition, WebScene Slides, which are comparable to Geobookmarks and thus make it possible to navigate simply and fast to configured map extents, can be used. Furthermore WebScene provides different functions, which can be found on the left side of the WebScene window.

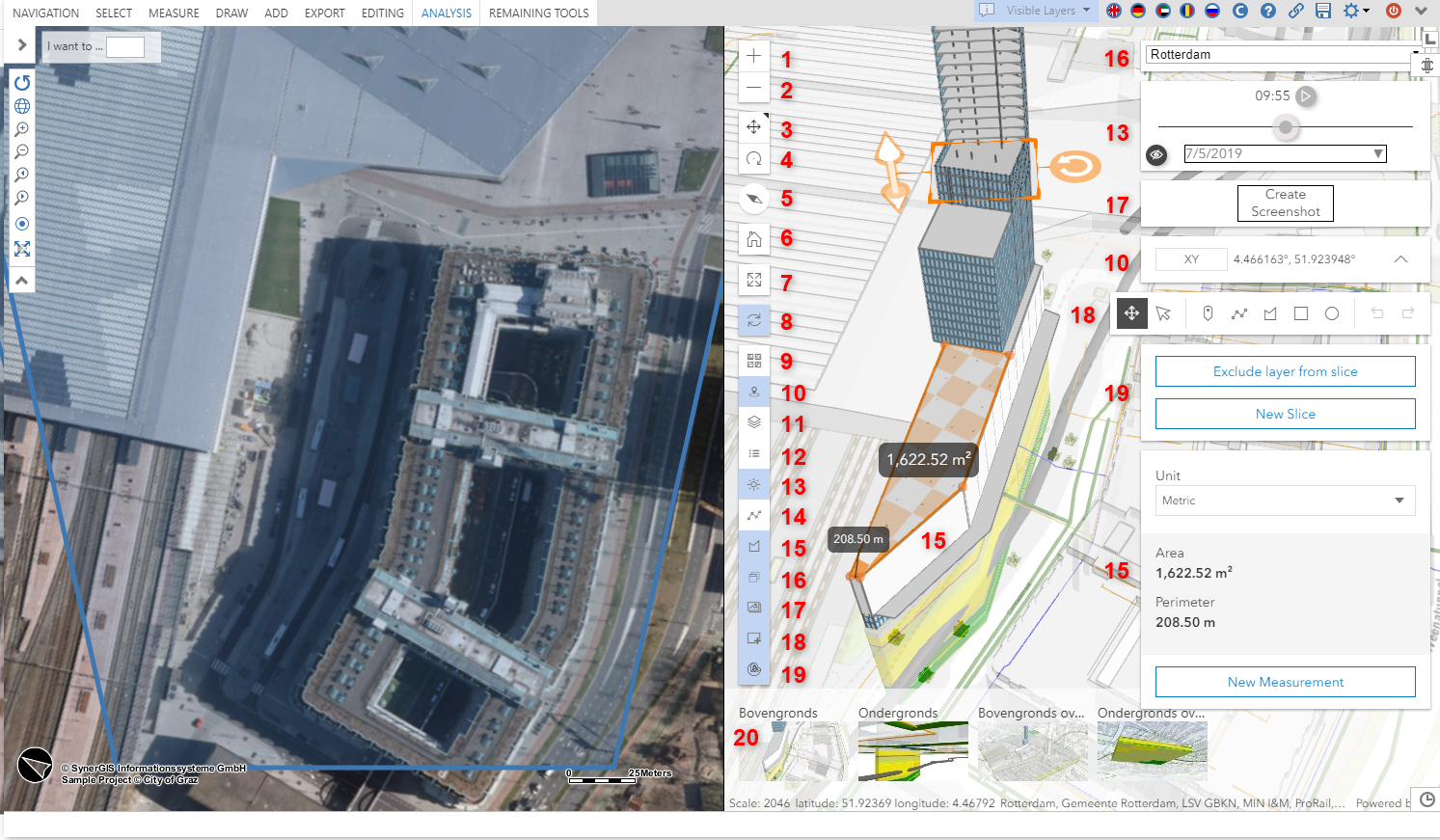

WebOffice core with Webscene  window in the right half of the main map display

WebOffice core with Webscene  window in the right half of the main map display



Line Of Sight

Line Of Sight





Performance info

Performance info



Building explorer

Building explorer



Elevation Profile

Elevation Profile



Floor Filter

Floor Filter





Funktion

Beschreibung


1   core_particularities_webscene04

Zoom In - Click on this button to enlarge the map extent in the Web scene window.


2 core_particularities_webscene05

Zoom Out - By clicking this button the map extent in the Web scene window is reduced to a smaller size.


3 core_particularities_webscene06

Toggle to pan or rotate in 3D - By clicking this button, the map area can be moved by pressing and holding the left mouse button.



4 core_particularities_webscene07

Toggle to pan or rotate in 3D - By clicking this button you can change the viewing angle in the map area by pressing and holding the left mouse button.



5 core_particularities_webscene08

Reset compass orientation - Clicking this button resets the orientation of the map area to north.



6 core_particularities_webscene09

Default map view - Clicking this button moves the map extent to the configured default map view.


7 core_particularities_webscene10

Enter full screen - Clicking this button activates the full screen mode



8 core_particularities_webscene25

Synchronisation - Clicking this button activates or deactivates the synchronisation between the 2D an 3D map.

Note: The extent will be also synchonized if the Synchronisation is deactivated, only the rotation will be suppressed.


9 core_particularities_webscene11

Basemaps - By clicking on this button you can select the Basemap of the Web scene



10 core_particularities_webscene18

Enter Coodinates - By clicking on this button the coordinates of the mouse cursor are displayed in variable coordinate systems.


11 core_particularities_webscene12

TOC (Table of Content) - Clicking on this button opens/closes a window in which you can switch the visibility of the individual themes.


12 core_particularities_webscene13

Show Legend - By clicking this button you can show/hide the legend


13 core_particularities_webscene14

Shadow control - Clicking on this button opens a window in which you can use the slider and the drop-down list to make settings to display shadow effects that are influenced by the times of the year and day.



14 core_particularities_webscene15

Measure Distance- Clicking this button opens a new window and activates the 3D measurement function.


15 core_particularities_webscene19

Measure Area - Clicking on this button opens a new window and activates the area measurement function.


16 core_particularities_webscene16

Scene control - Clicking this button opens a window in which you can choose between different web scenes.

17 core_particularities_webscene20

Screenshot - Clicking this button creates a screenshot of the WebScene window, which then can be downloaded as png-file.



18 core_particularities_webscene26

Markup - Using this tool you can draw points, lines, polygons, squares and circles.

Note: Markup online works in the 2D-level

Note: When using a WebScene Slide the layer containing the markup is automatically deactivated and must be reactivated in the TOC manually.

19 core_particularities_webscene27

Slice - Using this tool you can suppress or slice parts of the WebScene to make hidden content visible.



20 core_particularities_webscene23

WebScene Slides - WebScene Slides are comparable with Geobookmarks. By clicking a WebScene Slide it is possible that the camera moves to a configured map extent. Thus often used map views can be called up very fast end simple.



21 core_particularities_webscene29

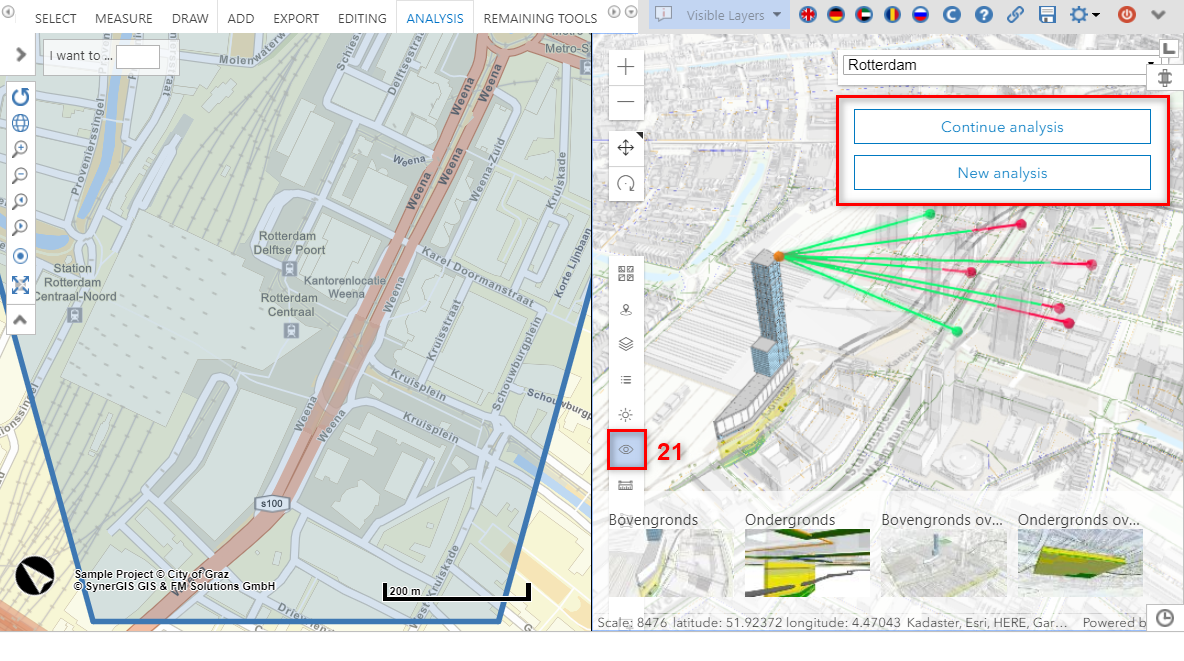

Line of sight - This tool can be used to determine the visibility of target points, starting from a specific point. By displaying the line of sight between the starting point and the respective destination points, the colour of the line segment can be used to quickly identify where a possible obstacle to visibility is located.

22core_particularities_webscene30

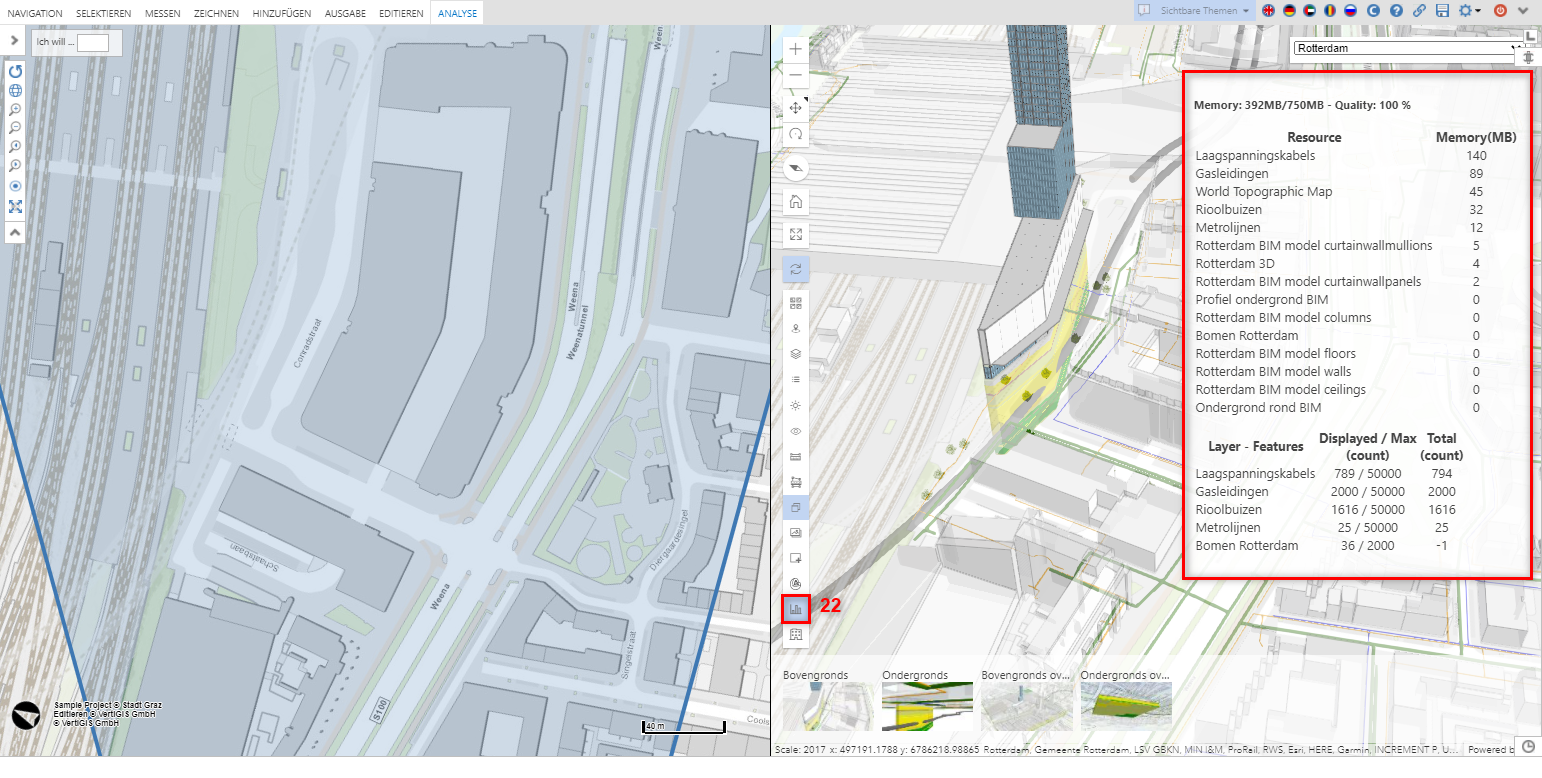

Performance Info - This tool can be used to show detailed performance data of the displayed resources

23core_particularities_webscene31

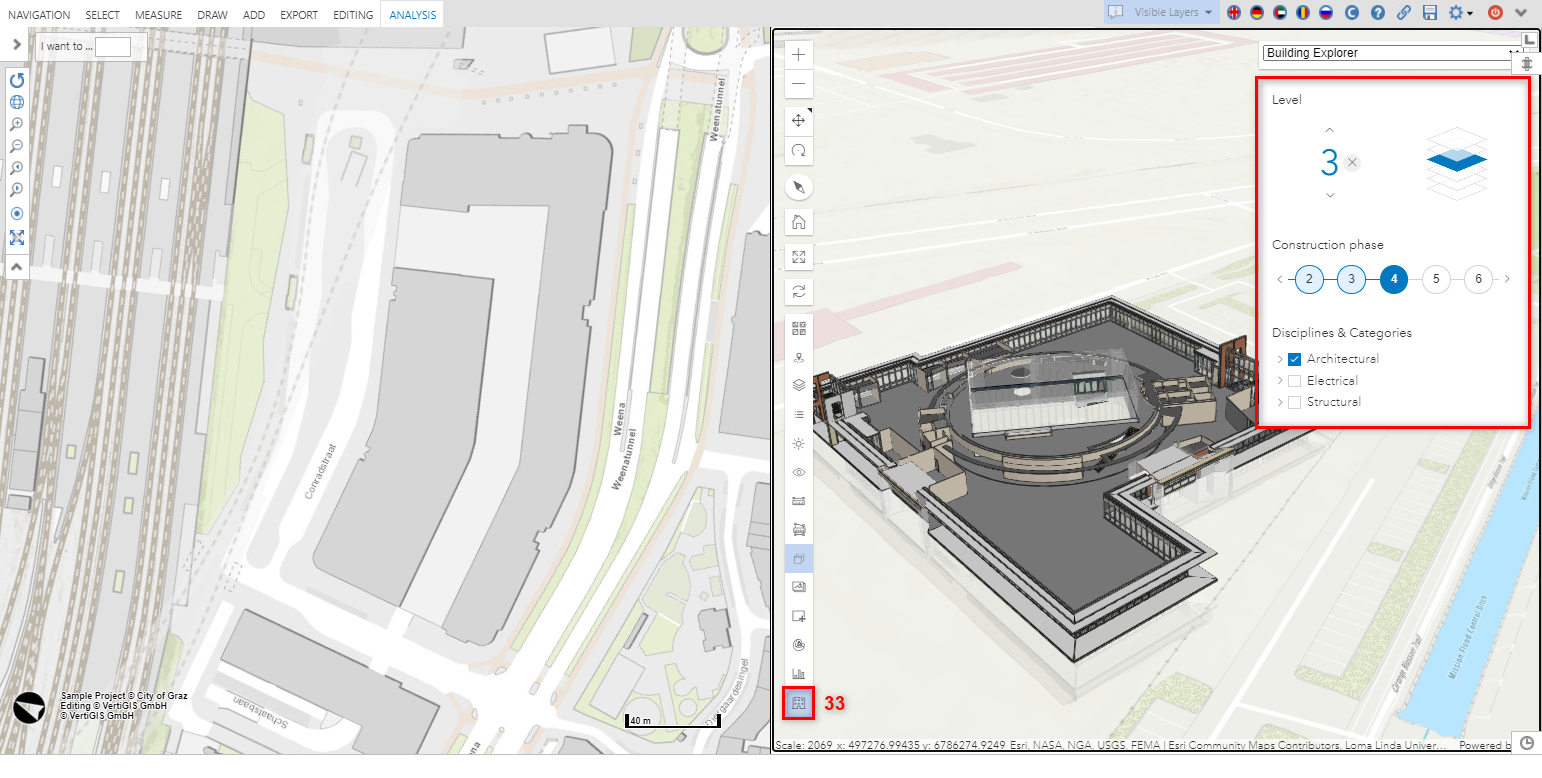

Building Explorer - With this tool, building data from BIM models can be displayed in a clearly arranged way. Different construction phases, levels or categories can be selected for display.

24core_particularities_webscene35

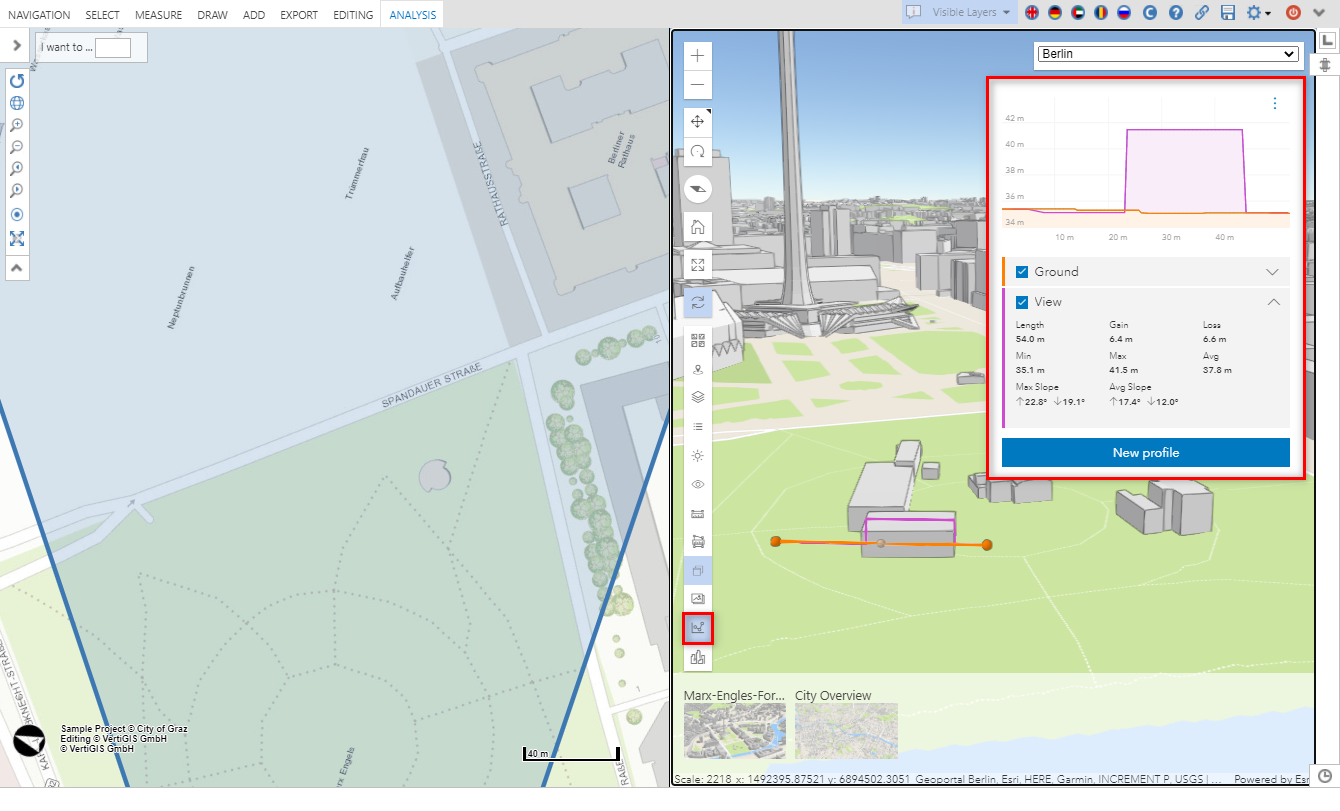

Elevation Profile - The Elevation Profile widget is used to generate and display an elevation profile from an input line graph. The widget is configured to display two elevation profile lines, one for the ground and one for the buildings.

25core_particularities_webscene36

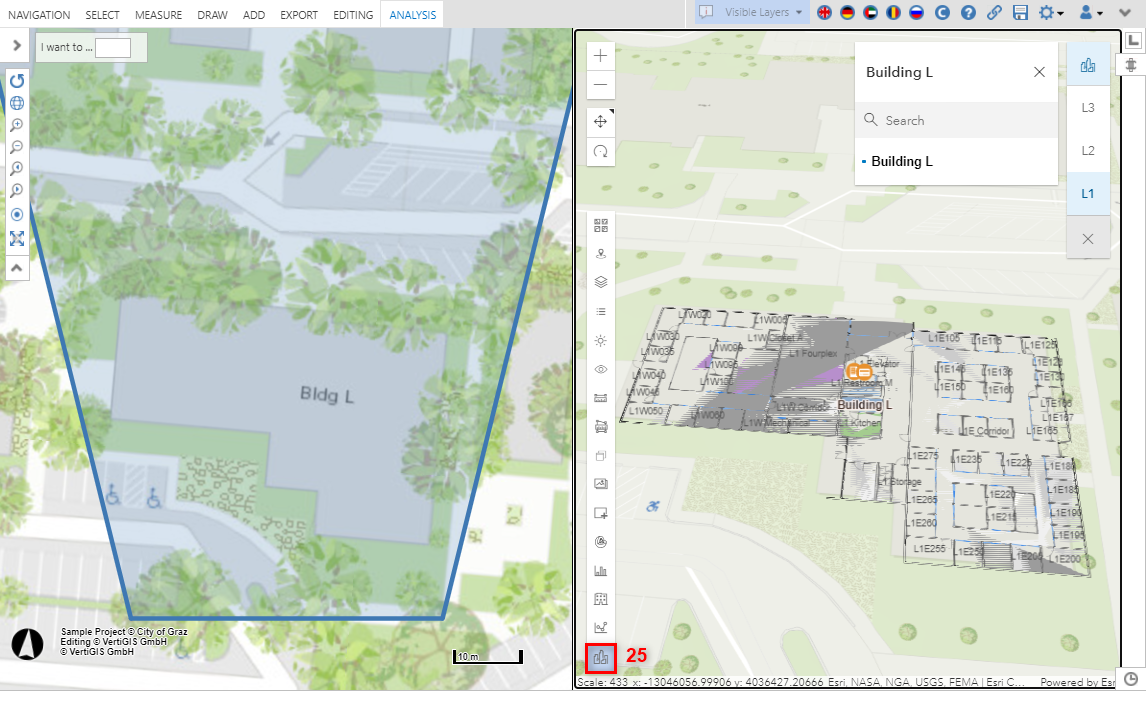

The FloorFilter widget simplifies the visualization of GIS data for a specific floor of a building. It is possible to filter down floor plan data from a MapView or SceneView to a location, a facility in the location, or a floor in the facility.

Note: To enable this functionality, the underlying map must be floor-aware. For more information, see the Floor-Aware Maps chapter



OpenStreetMap 3D Buildings

Since WebOffice 10.9 R3 the use of non-secured service types published on ArcGIS are supported. The usage of the new parameter 'url' in the ArcGIS WebScene custom tool, causes this change. So e.g. OpenStreetMap 3D Buildings can be applied to the project.

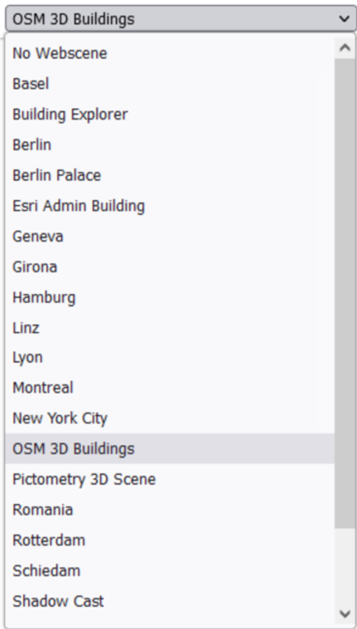

Figure 2: OSM 3D Buildings WebScene Selection

Figure 2: OSM 3D Buildings WebScene Selection

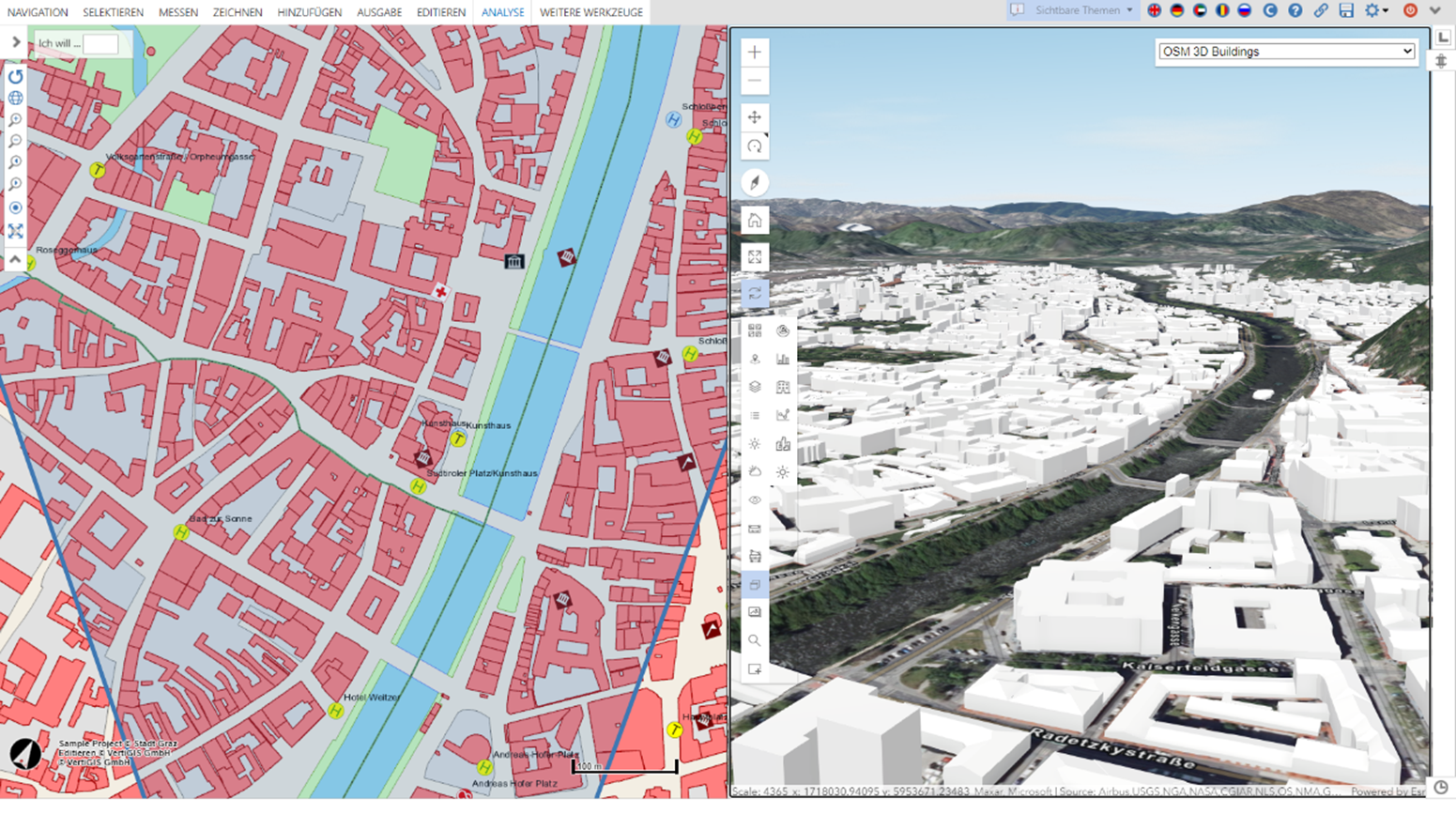

Figure 3: OSM 3D Buildings WebScene

Figure 3: OSM 3D Buildings WebScene



Note: For information about configuring a Web Scene, see the chapter Configure a Web Scene.

Note: If Map Rotation is used in the WebOffice core client, the current rotation also affects the custom tool (and vice versa). The current rotation is also automatically applied when the custom tool is opened. For more information on configuring the map rotation functionality in the WebOffice core client see Map Rotation.

Note: WebGL is not in supported in Internet Explorer 11. Because of that WebScenes are not supported in Internet Explorer 11. For more information see chapter Clientside requirements.
